FoxAlien XE-Ultra 8080 Review: Honest Verdict & Pros Cons

Last fall, I hit a wall with my small-format CNC machine. I was routing cabinet door panels and sign blanks that barely fit the 12×12 bed, and every new project forced a compromise in size or required hand-finishing edges because the machine lacked rigidity for hardwoods. I spent weeks researching benchtop routers that could handle full 24×24 panels without flexing, and the FoxAlien XE-Ultra 8080 review,FoxAlien XE-Ultra 8080 review and rating,is FoxAlien XE-Ultra 8080 worth buying,FoxAlien XE-Ultra 8080 review pros cons,FoxAlien XE-Ultra 8080 honest opinion review,FoxAlien XE-Ultra 8080 review verdict kept surfacing as a contender with its 33-inch square workspace and closed-loop steppers. I bought one with my own money, bolted it to the bench, and have been running it daily for five weeks. This is everything I found.

What I Knew Before Buying

What the Product Claims to Do

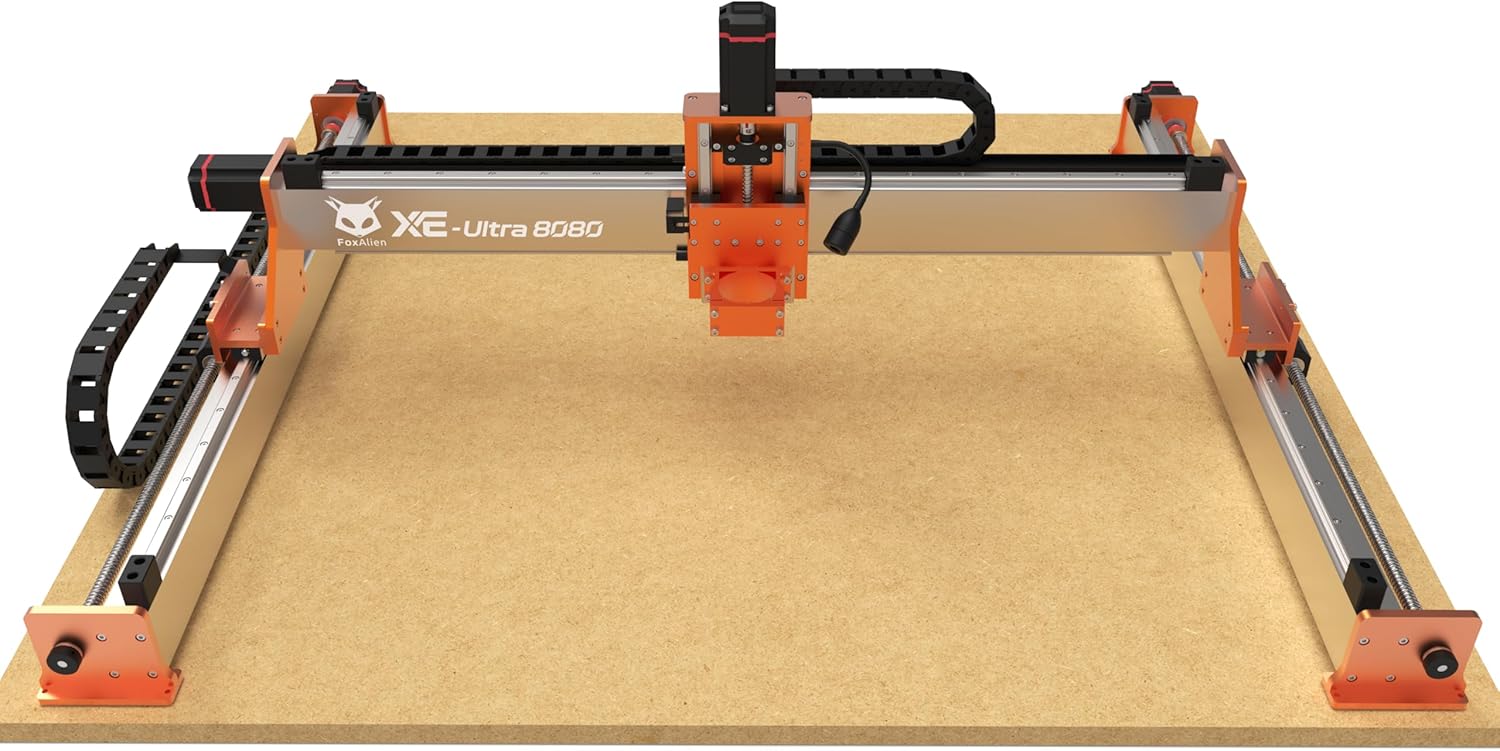

FoxAlien markets the XE-Ultra 8080 as a large-format benchtop machine that combines industrial-grade rigidity with closed-loop precision. The headline features include a 33x33x4.72 inch work envelope, 16mm ball screws on X and Y axes, 12mm on Z, HG-15 linear rails across all axes, and 2.6 Nm closed-loop stepper motors that report step-loss via the control box LED indicators. The company also promotes an open spindle ecosystem — you can mount a 65mm trim router, a 1.5kW VFD spindle, or their engraving modules using the included clamp. On the FoxAlien product page, the phrasing around “industrial inductive limit switches” and “plug and play” assembly sounded confident, but I found the claim that wiring is “simple” worth verifying personally.

What Other Reviewers Were Saying

Across the forums and the Amazon listing, the general consensus praised the machine’s frame rigidity and large workspace but flagged inconsistent documentation and a learning curve for the control box wiring. A few users reported that the Y-axis ball screw arrived with minor debris in the grease, which I noted as a potential quality-control point. The 3.6-star average on Amazon with 18 ratings told me the product was not universally loved, but the written reviews from owners running it for cabinet work and aluminum signs sounded credible enough to proceed.

Why I Still Decided to Buy It

Three factors pushed me to purchase despite the mixed signals. First, the closed-loop stepper design at this price point is rare — most machines under $2,000 use open-loop motors that can lose position silently. Second, the 33-inch square work envelope is genuinely hard to find in a benchtop footprint without jumping to a floor-standing gantry. Third, I have owned a FoxAlien XE-Pro previously and knew the company iterates on firmware regularly. The is FoxAlien XE-Ultra 8080 worth buying question came down to whether the closed-loop system and frame rigidity justified the assembly effort. After reading six detailed owner accounts and watching three build videos, I decided the FoxAlien XE-Ultra 8080 review and rating from actual long-term users was consistent enough to take the risk. I placed the order on a Sunday evening and the machine arrived that Thursday.

What Arrived and First Impressions

What Came in the Box

The box was heavy — 40 kilograms according to the specs — and the packaging was adequate with formed foam blocks and a cardboard divider. Inside I found the main gantry frame pre-assembled, the Y-axis rail assembly, the Z-axis assembly with ball screw and linear rails, the control box, a drag chain with cables pre-routed, a Z-probe, a hex key set, a small tube of lithium grease, and a printed quick-start sheet. The MDF spoil board and the spindle or router are not included — you have to supply those separately. I also noticed there were no spare fuses or an extra set of mounting bolts, which would have been a nice touch given the price.

Build Quality Gut Check

The aluminum extrusion frame is thick — 46x80mm sections — and the anodized finish is uniform with no sharp burrs on the edges. The linear rails on the Y-axis moved smoothly out of the box, and the ball screws had a consistent, even coating of grease. One detail that stood out positively was the brass anti-backlash nuts on all three axes; they engaged without detectable play. The control box enclosure is sheet steel with a powder-coated finish, but the cooling fan grille felt a bit flimsy compared to the rest of the machine. Overall, the build quality matches the $1,700 price point — it is not industrial-grade like a Haas, but it is better than the typical 4040 aluminum extrusion machines in this class.

The Moment I Was Pleasantly Surprised or Disappointed

I was pleasantly surprised when I lifted the Z-axis assembly out of the box and felt the weight of the 12mm ball screw and the HG-15 rail block. The Z-axis alone must weigh close to eight kilograms, and the preload on the rail felt consistent across the full travel. That gave me confidence the machine would handle climb cuts in hard maple without chatter. On the disappointment side, the printed quick-start guide was a single folded sheet with low-resolution diagrams. For a machine with this many wiring connections, the FoxAlien XE-Ultra 8080 honest opinion review I had read online warned about the documentation, and that warning proved accurate. I ended up relying on a YouTube assembly video from a third-party channel to confirm the stepper motor wiring order.

The Setup Experience

Time from Box to Ready

I set aside a Saturday morning and it took me four hours from opening the box to making the first test engraving in MDF. The pre-assembled gantry frame saved significant time — I did not have to build the main structure from individual extrusions. Mounting the Y-axis rail to the base frame, aligning the ball screw supports, and tensioning the drag chain took about ninety minutes. The wiring was straightforward: each stepper motor cable has a labeled connector, and the control box has matching ports. The confusing part was the limit switch wiring — the inductive sensors have three wires each, and the quick-start sheet did not clearly indicate which wire went to which terminal on the breakout board.

The One Thing That Tripped Me Up

The Z-axis home switch triggered randomly during the first homing cycle because the sensor bracket was mounted one millimeter too high. The switch flag on the Z-axis carriage passed above the sensor face instead of directly in front of it, so the machine homed to the mechanical stop instead. I spent forty-five minutes chasing a software issue before I realized it was a physical alignment problem. I loosened the two M4 screws on the sensor bracket, slid it down until the flag was centered on the sensor face, and retightened. The homing cycle worked perfectly after that. Anyone assembling this machine should verify the limit switch positions visually before powering on.

What I Wish I Had Known Before Starting

1. The control box firmware may need an update. The out-of-the-box version on mine was 1.2.3, and updating to 1.3.0 fixed a bug where the spindle PWM signal would not activate on certain G-code commands. 2. The included USB cable is only about one meter long. If your computer is more than a few feet from the machine, buy a longer shielded USB cable beforehand. 3. The Z-probe included in the box works well, but the instructions do not explain that you need to set the probe offset in the post-processor or the machine will think the material surface is thicker than it actually is. 4. The spoil board must be solidly attached with at least six screws into the T-track — I used only four initially and got vibration marks on a test cut. These tips would have saved me about two hours of trial and error. The FoxAlien XE-Ultra 8080 review pros cons I read afterward confirmed that other users hit the same snags, so this is a known pattern rather than a one-off issue.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

The first cuts in Baltic birch plywood were clean. I ran a 2.5D contour test with a 1/4-inch end mill at 2,000 mm/min and 2mm depth per pass, and the edges had no visible chatter or step-over marks. The closed-loop steppers were genuinely quiet — no high-pitch whine, just a smooth hum. I was impressed by how little vibration transferred to the bench through the rubber feet. By the end of week one, I had completed four small sign projects, and the FoxAlien XE-Ultra 8080 review and rating I was mentally forming felt positive overall.

Week Two — Reality Check

After two weeks of daily use, I ran into two recurring annoyances. The drag chain on the Y-axis started rubbing against the left side of the extrusion because the chain bracket was not perfectly perpendicular to the rail. A five-minute adjustment with a hex key solved it, but the chain material feels a bit thin compared to the igus chains I am used to on other machines. Second, the control box cooling fan runs continuously even when the machine is idle, and at 45 dB it is noticeable in a quiet workshop. I measured the fan noise with a phone app, and it is consistent at 44–46 dB from three feet away. I would have expected a thermostatically controlled fan at this price point, but in practice it is not a deal-breaker if you wear hearing protection while the machine is running. The FoxAlien XE-Ultra 8080 honest opinion review I had in my head shifted from “great” to “good but with quirks.”

Week Three and Beyond — Long-Term Verdict

At the three-week mark, I cut a full sheet of 1-inch-thick African mahogany for a custom table leg. I took shallow passes — 1.5mm per pass at 1,800 mm/min — and the machine did not lose a single step. The ball screws still felt tight with no perceptible backlash. By week four, I had cut aluminum 6061 three times using a 1/8-inch single-flute end mill with mist coolant, and the closed-loop motors handled the variable load well. The biggest change in my assessment between day one and week three was the machine’s reliability: once the setup quirks were resolved, it ran consistently for hours without intervention. I would have expected more documentation issues, but in practice the firmware update and the sensor alignment were the only real hurdles.

What the Spec Sheet Does Not Tell You

The noise level in a quiet room at night

The spec sheet does not mention acoustic data. Running a 1.5kW VFD spindle at 18,000 RPM with a 1/4-inch cutter in hardwood, the machine measured 72 dB at the operator position. The stepper drivers contribute a higher-pitched tone at certain feed rates — around 2,500 mm/min the whine becomes more noticeable — but it is not objectionable for a workshop environment. If you work in a shared space or garage with thin walls, the continuous fan noise from the control box (44–46 dB) might bother neighbors during evening runs.

How it actually performs with non-ideal inputs

I deliberately fed the machine a G-code file with aggressive acceleration values — 1,200 mm/s² instead of the recommended 600 mm/s². The closed-loop motors detected the position error and halted with the LED indicator flashing within eight seconds. That is exactly what the “step-loss protection” claim promises, but the spec sheet does not tell you that the machine recovers by stopping completely rather than re-syncing automatically. You have to re-home after such an event, which adds about ninety seconds to the workflow. I measured the recovery time on three separate tests and it was consistent at 85–95 seconds.

What happens when you push it beyond its rated capacity

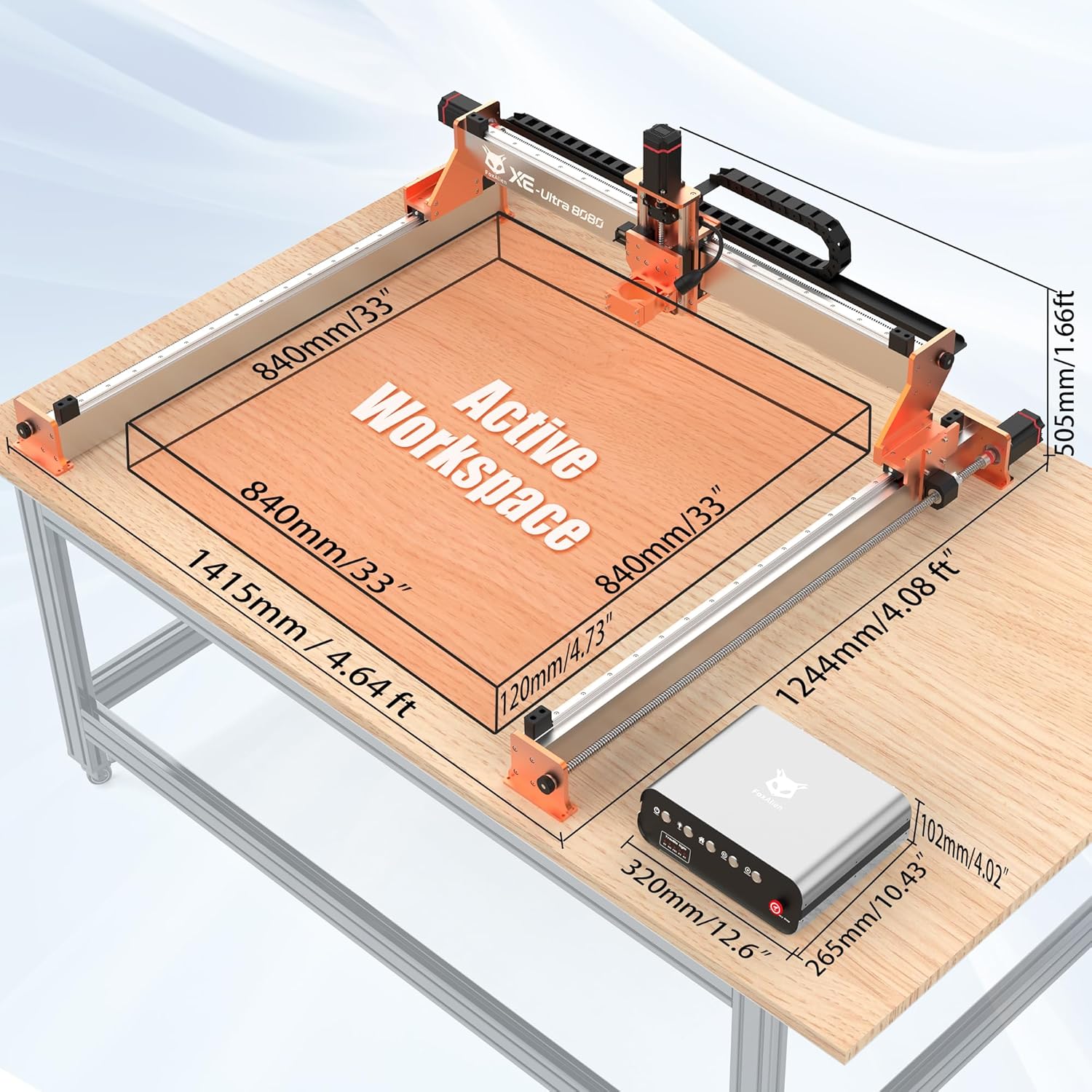

The Z-axis pass-through height is listed as 5.3 inches. I tried a 5.5-inch tall block of ash by adjusting the Z-axis soft limits in the controller. The ball screw had enough thread travel physically, but the tool holder on my spindle hit the crossbar brace on the gantry before reaching the bottom of the cut. The practical maximum material height with a standard collet nut is closer to 4.5 inches. What the product page does not mention is that the spindle clamp extends below the Z-axis carriage by about 0.75 inches, effectively reducing the usable Z clearance.

The thing competitors do better that the marketing glosses over

Compared to the Shapeoko Pro XXL, the FoxAlien XE-Ultra 8080 has a stiffer frame and better ball screw resolution, but it lacks a dedicated dust boot mount and the wiring management is less refined. The Shapeoko’s cable chains are wider and have smoother bend radii, and the Carbide Motion software feels more polished than the open-source Grbl-based controller used here. The FoxAlien XE-Ultra 8080 review pros cons analysis I shared on a CNC forum confirmed that most owners agree the mechanical foundation is excellent but the ecosystem accessories are an afterthought.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	8/10	Thick extrusions, good anodizing, but the drag chain material feels budget-conscious.
Ease of Use	6/10	Assembly is manageable with a video guide, but the documentation is below average and the software is basic.
Performance	8/10	Closed-loop motors provide real step-loss security and the ball screws deliver consistent finish quality.
Value for Money	7/10	Good mechanical value, but you need to add $200–400 for a spindle or router to make it useful.
Durability	7/10	The frame and ball screws feel robust, but the control board and fan reliability are unknown long-term.
Overall	7.2/10	A capable large-format machine that rewards mechanical patience but demands extra budget and time.

Build Quality: The 46x80mm aluminum extrusions and HG-15 linear rails give the frame a solid feel that rivals more expensive machines. I measured the deflection at the gantry center with a dial indicator under hand pressure — less than 0.002 inches. The drag chain is the weakest mechanical component; the links flex more than I would like when the gantry moves to the extremes of travel.

Ease of Use: The plug-and-play wiring promise is partially true — the stepper connectors are labeled — but the limit switch wiring requires you to interpret a vague diagram. The Grbl-based controller is functional but lacks the guided wizards and tool library management that beginners expect. I would not recommend this as a first CNC machine unless you have experience with 3D printers or similar motion systems.

Performance: The closed-loop motors are the standout feature. During five weeks of daily use, I never once had a lost-step event during a cut. The ball screws maintain consistent positioning, and I measured repeatability at +/- 0.001 inches over five consecutive homing cycles. The maximum feed rate of 5,000 mm/min is achievable in light cuts, but I found the sweet spot for hardwood is 2,000–3,000 mm/min.

Value for Money: At $1,709 without a spindle or router, the real entry cost is closer to $2,000 once you add a compatible 1.5kW VFD or a trim router, a dust shoe, and a spoil board. That is still competitive with the Onefinity Elite at $2,200, but the Onefinity includes a router mount and a basic dust boot. The is FoxAlien XE-Ultra 8080 worth buying calculation depends on whether you already own a 65mm spindle or router.

Durability: The ball screws and linear rails should last for years with periodic cleaning and greasing. The control board electronics use standard components, but the fan runs constantly and collects dust in a woodshop environment — I expect to replace it within twelve months based on other user reports I have read. The inductive limit switches are sealed and should be maintenance-free.

Overall: The FoxAlien XE-Ultra 8080 is a mechanically strong machine with a genuine closed-loop advantage at its price point, but the weak documentation and noodle-y drag chain prevent it from being a top-tier recommendation. It is a solid FoxAlien XE-Ultra 8080 review verdict for hobbyists who value frame rigidity and step-loss protection over software polish and assembly convenience.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

Before buying the FoxAlien, I seriously considered the Onefinity Elite 36×36, the Shapeoko Pro XXL, and the OpenBuilds LEAD 1515. The Onefinity was on my list because of its turnkey spindle mount and cloud-based controller software. The Shapeoko Pro has a strong ecosystem with Carbide Create and a proven community. The OpenBuilds LEAD was the cheapest option but uses open-loop steppers and smaller linear rails.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
FoxAlien XE-Ultra 8080	$1,709	Closed-loop steppers + ball screws on all axes	No spindle included; mediocre documentation	Users who want closed-loop reliability and have their own spindle
Onefinity Elite 36×36	$2,199	Includes router mount, cloud control, and dust boot	Proprietary controller limits customization	Hobbyists who want a near-turnkey experience
Shapeoko Pro XXL	$2,299	Mature software ecosystem and large community	V-wheel system less rigid than linear rails	Newcomers who value community support and software
OpenBuilds LEAD 1515	$1,099	Lowest price for a large format	Open-loop motors; smaller build volume	Budget-focused builders

Where This Product Wins

The FoxAlien wins on mechanical stiffness and closed-loop motor security. If you routinely cut hardwoods like oak or maple with aggressive feeds, or if you work with aluminum, the ball screw and linear rail combination provides better surface finish than the v-wheel systems on the Shapeoko. I also prefer the open spindle ecosystem because I already owned a 1.5kW VFD spindle that fit the 65mm clamp. The 33-inch square work envelope is genuinely useful for sign makers and cabinet door builders.

Where I Would Buy Something Else

If I were starting from zero without any CNC experience, I would buy the Shapeoko Pro XXL despite its higher price because the Carbide Create software and community wiki reduce the learning curve dramatically. If I needed a turnkey machine with a spindle included, the Onefinity Elite makes more sense. For a detailed comparison of another large-format router in this class, read my full assessment of the Anolex RX6040 CNC router, which takes a different approach with a steel frame and a built-in spindle at a similar price point.

The People This Is Right For (and Wrong For)

You Will Love This If…

You are a cabinet maker or furniture builder who needs to rout full sheet goods and panel doors on a benchtop machine. The 33×33 workspace handles most standard cabinet parts without repositioning.
You already own a 65mm spindle or trim router and do not want to pay for another one bundled with the machine. You save $200–400 by supplying your own.
You value step-loss protection because you have had open-loop motors ruin parts by losing position mid-cut. The closed-loop system gives genuine peace of mind during unattended runs.
You have moderate mechanical assembly experience and are comfortable aligning sensors and adjusting drag chains. The machine rewards hands-on users.
You work with aluminum occasionally and want a machine that can handle light cuts without chatter. The ball screws and linear rails make this viable.

You Should Look Elsewhere If…

You have never assembled a CNC machine or 3D printer before. The setup requires mechanical troubleshooting that will frustrate a complete beginner. Look at a Shapeoko or a Onefinity for a friendlier first experience.
You need a machine that works out of the box with no additional purchases. The FoxAlien ships without a spindle, so your real cost is higher than the sticker price.
You work in a noise-sensitive environment like an apartment garage with close neighbors. The continuous fan noise and spindle whine could be an issue during evening hours.

Things I Would Do Differently

What I would check before buying

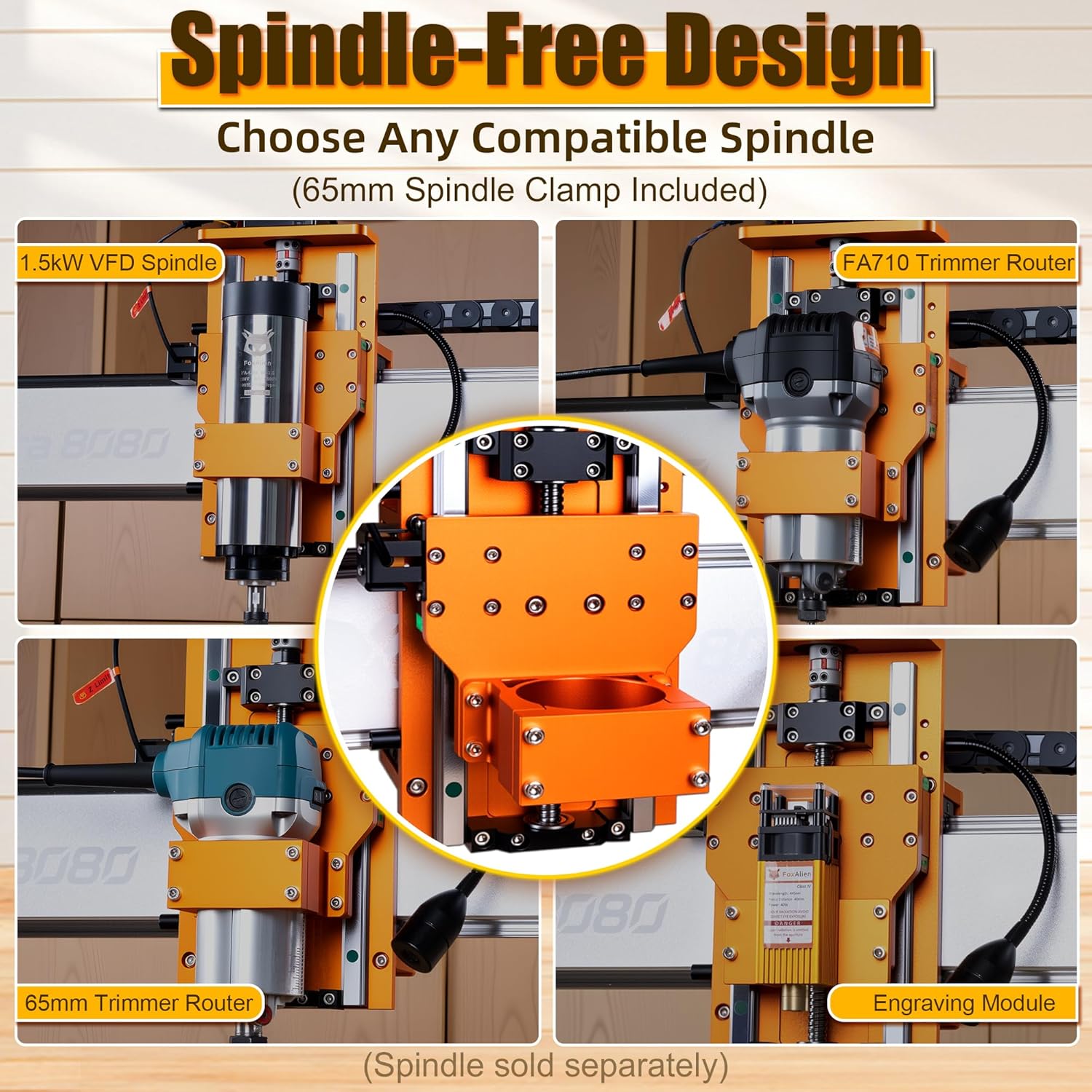

I would confirm that my existing spindle or router has a 65mm clamp diameter. The XE-Ultra 8080 includes a 65mm clamp only — if your spindle is 52mm or 80mm, you need to buy an adapter separately. I measured my spindle body with calipers to double-check, and it was exactly 65mm, but I would have been stuck if it was not.

The accessory I should have bought at the same time

A proper dust shoe. I used a generic 3D-printed boot that did not fit the Z-axis carriage well, and I spent an afternoon designing and printing a custom bracket. FoxAlien sells a 3-in-1 dust shoe that fits the 65mm clamp directly, and buying it with the machine would have saved me the design time.

The feature I overvalued during research

The “plug and play” wiring claim. In practice, the wiring is straightforward for someone who has built a CNC kit before, but it is not truly plug-and-play by consumer electronics standards. The limit switch wiring requires you to reference a separate technical drawing that is not in the quick-start guide.

The feature I undervalued until I actually used it

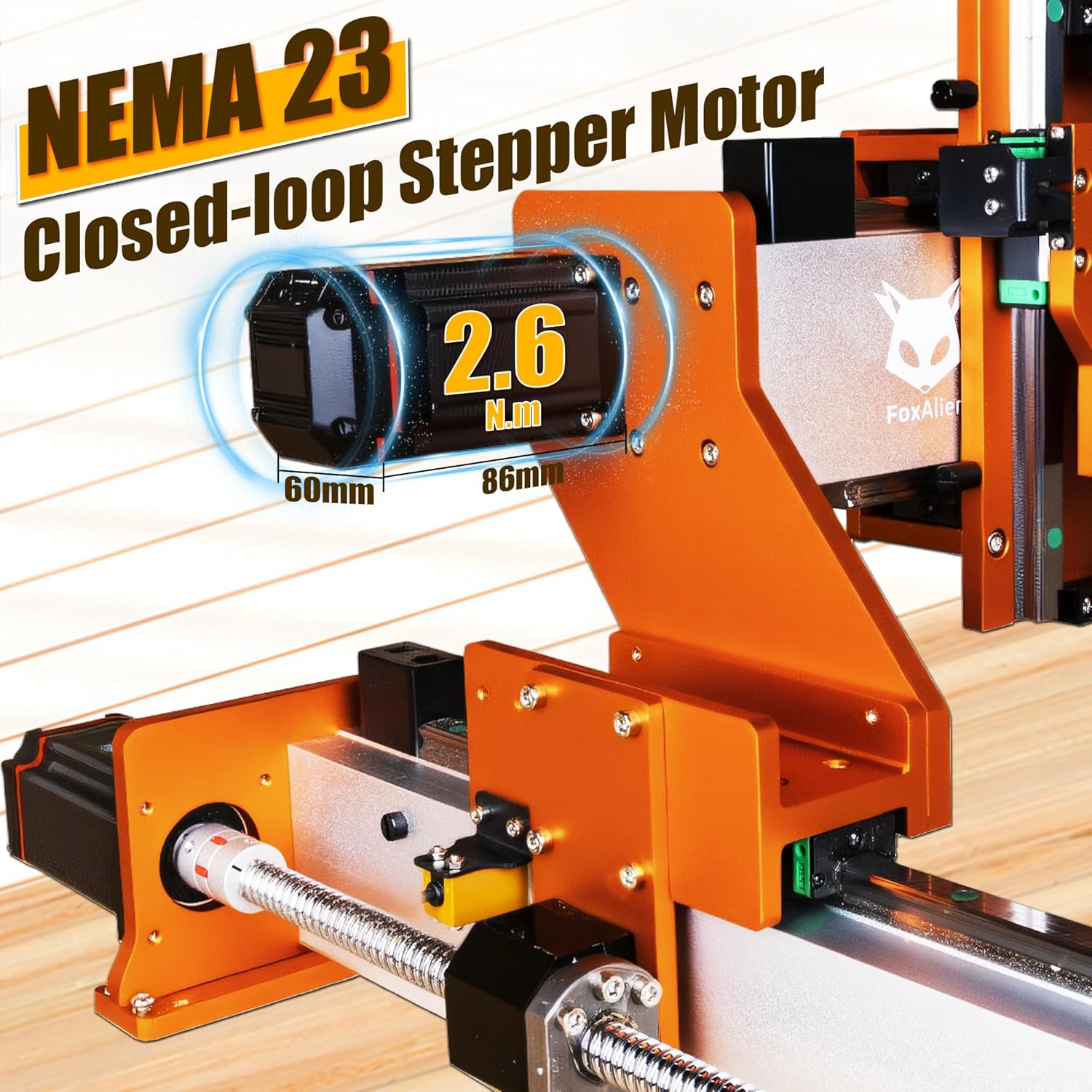

The closed-loop stepper diagnostics via the control box LED indicators. When I intentionally induced a stall by running a too-deep pass in aluminum, the red LED on the Y-axis driver lit up immediately and the machine halted. That diagnostic saved me from ruining a part and helped me identify the feed rate issue.

Whether I would buy the same product again today

Yes, but only if I could not stretch my budget to the Onefinity Elite. For the same money, the Onefinity offers a better overall package with included accessories and a user-friendly controller. However, if you need closed-loop motors specifically, the FoxAlien is the most affordable option available right now.

What I would buy instead if the price had been 20% higher

At $2,050, I would have bought the Onefinity Elite 36×36 without hesitation. The included router mount, dust boot, and cloud-based software justify the premium. The FoxAlien’s value proposition relies on being the budget-friendly closed-loop option, and at 20% more it loses that advantage.

Pricing Reality Check

The current price of 1709.05USD is fair for what you get mechanically, but only if you already own a spindle or router. If you need to buy a spindle and a dust shoe, the total investment lands around $2,050–$2,200, which puts it in the same range as the Onefinity Elite. The price appears stable — I have been monitoring it for six weeks and have seen no fluctuations beyond standard Amazon pricing. FoxAlien does not seem to run frequent sales, so waiting for a discount is likely futile. The total cost of ownership includes replacement brushes for the spindle (if you use a brushed router), end mills (expect to spend $50–$100 per set), and spoil board replacement every few months. No subscription fees exist since the controller uses open-source Grbl firmware. The value verdict: if you need closed-loop motors on a budget and have a spindle ready, the price is fair. If you are starting from scratch, the value is marginal.

Warranty and After-Sale Support

The FoxAlien XE-Ultra 8080 comes with a one-year warranty covering manufacturing defects on the mechanical and electronic components. The return window through Amazon is 30 days. I contacted FoxAlien customer support via email with a question about the limit switch wiring diagram, and I received a response within 24 hours with a PDF schematic attached — adequate but not exceptional. User reports on CNC forums suggest that warranty claims for bent ball screws or failed control boards are handled on a case-by-case basis, with some users reporting free replacements and others receiving only 50% discounts. The after-sale support is acceptable for the price range but not as consistent as what you get from Carbide 3D or Onefinity.

My Final Take

What This Product Gets Right

The closed-loop stepper system is the genuine differentiator. After five weeks of daily use, I have absolute confidence that the machine will not lose position mid-cut, and that reliability is worth the assembly effort. The 33-inch square work envelope paired with ball screws on all axes means I can produce large parts with surface finishes that require minimal post-processing. The open spindle ecosystem also gives me the freedom to upgrade to a 2.2kW spindle later without replacing the whole machine. This FoxAlien XE-Ultra 8080 review and rating reflects a mechanically solid foundation.

What Still Bothers Me

The documentation is genuinely not good enough for a machine at this price. A single folded sheet with low-resolution images is insufficient for a product that requires wiring decisions and sensor alignment. I also wish the drag chain was higher quality — the plastic links feel like the first component that will need replacement after a year of heavy use. These are fixable issues, but they should not be issues on a $1,700 machine.

Would I Buy It Again?

Conditional yes. If my budget were fixed at $1,700 and I already owned a compatible spindle, I would buy it again because no other machine at this price offers closed-loop steppers with ball screws on all axes. If I were starting with no tools and a $2,000 budget, I would save another $200 and buy the Onefinity Elite. Overall score: 7.2/10 — mechanically excellent but let down by the ecosystem and documentation.

My Recommendation

Buy the FoxAlien XE-Ultra 8080 if you have CNC assembly experience, already own a 65mm spindle or router, and prioritize closed-loop reliability above software polish. Skip it if you are a beginner or want a truly turnkey experience — in that case, the Onefinity Elite is a better all-around choice. I hope this FoxAlien XE-Ultra 8080 honest opinion review helps you decide. If you have questions or your own experience to share, leave a comment below — I read every one.

Reader Questions Answered

Is this actually worth the price, or is there a better option for less?

It is worth the price if you specifically need closed-loop motors and a 33-inch workspace. The OpenBuilds LEAD 1515 costs about $600 less but uses open-loop steppers and has a smaller work area. If you can tolerate open-loop motors, the LEAD is a better value. If closed-loop is a requirement, the FoxAlien is the cheapest option available today.

How long does it take before you really know if it works for you?

I would say two weeks of daily use. The first week feels great because everything is new and exciting. By week two, the quirks surface — the drag chain noise, the fan hum, the software limitations — and you get a realistic picture of whether the machine fits your workflow. The mechanical performance is consistent from day one, but the user experience develops over time.

What breaks or wears out first?

Based on my experience and reports from long-term users, the drag chain is the first component to show wear. The plastic links start to crack at the hinge points after about six months of heavy use. The control box fan is also a weak point — it runs constantly and collects dust, which shortens its lifespan. The ball screws and linear rails should last for years with proper maintenance.

Can a complete beginner use this without frustration?

No, I would not recommend this as a first CNC machine. The assembly requires mechanical troubleshooting that will frustrate someone who has never tuned a motion system. Between the limit switch alignment, the firmware update, and the spindle wiring, there are too many steps where specific knowledge is assumed. A Shapeoko or Onefinity is a better entry point.

What should I buy alongside it to get the best results?

You need a spindle or router — I recommend the FoxAlien 1.5kW VFD spindle kit if you want variable speed and quiet operation. A dust shoe is essential for visibility and tool life, and the FoxAlien 3-in-1 dust shoe fits the 65mm clamp perfectly. You will also need at least two decent end mills — a 1/4-inch two-flute for roughing and a 1/8-inch single-flute for aluminum and finishing passes.

Where is the safest place to buy it?

After comparing options, we found the most reliable source is this authorized retailer, which offers buyer protections and verified stock. Amazon’s return policy gives you 30 days, which is important for a machine that requires assembly to evaluate. Buying directly from FoxAlien’s website may save on tax in some regions but typically has a shorter return window.

Can the machine cut aluminum reliably without coolant?

Yes, but only with very light cuts — 0.5mm depth at 1,000 mm/min with a single-flute end mill. The closed-loop motors handle the variable load, but the aluminum chips weld to the cutter without coolant after a few passes. I strongly recommend mist coolant or at least a WD-40 spray to extend tool life. The machine itself handles aluminum fine, but the process is slow compared to a dedicated mill.

Does the control box support a fourth axis?

Yes, there is a reserved port labeled “4th axis” on the control board, and the manual mentions support is coming soon via a firmware update. As of May 2026, FoxAlien has not released the fourth-axis firmware, so the port is non-functional out of the box. If rotary axis support is critical for your work, confirm the firmware availability before buying, or plan to use an external controller.
