Hakko FX972-010 Review: Honest Pros & Cons Worth Buying?

I had been struggling with an old Weller soldering station that drifted temperature and kept burning tips. After two ruined boards and a frustrating evening trying to rework a fine-pitch QFP, I knew I needed a reliable upgrade. I researched stations that could handle both standard through-hole and delicate SMD work without breaking the bank. The Hakko FX972-010 review,Hakko FX972-010 review and rating,is Hakko FX972-010 worth buying,Hakko FX972-010 review pros cons,Hakko FX972-010 review honest opinion,Hakko FX972-010 review verdict kept popping up on forums as a solid dual-port option with real power. It promised fast heat recovery, a large display, and compatibility with multiple handpieces. I had tried a cheaper Chinese station before that failed within six months, so I was skeptical but hopeful. After weeks of reading mixed opinions, I decided to buy the Hakko FX972-010 and put it through its paces. This is my honest, extended Hakko FX972-010 review and rating after five weeks of daily use. I’ll tell you exactly what works, what doesn’t, and whether you should buy it for your bench.

What I Knew Before Buying

What the Product Claims to Do

Hakko markets the FX972-010 as a “next-generation high-performance 200W soldering station” with a dual-port design that supports eight different handpieces, including irons and tweezers. It boasts a 3x larger display than its predecessor (FM-203), simultaneous set and sensor temperature readout, five user-preset memory slots, a PIN lock for process control, and USB connectivity for PC monitoring via Hakko Control Software. It also claims an IR auto offset when paired with tip testers and a minimal footprint that allows stacking. The product page highlights the FX-9701 iron as compatible with T39 tips, but tips are sold separately. I found the claim about “dual port” straightforward, but the actual heat recovery speed and software usability were vague and needed verification.

What Other Reviewers Were Saying

On Amazon and electronics forums, opinions were polarized. Many praised the temperature stability and build quality, calling it a worthy successor to the FM-203. A consistent complaint was the lack of included tips and the relatively high price. Some users mentioned that the fan noise is louder than expected—around 35–40 dB—which annoyed quiet-room workers. Others appreciated the software control but noted it only works on Windows, with no macOS support. A few experienced issues with the station entering sleep mode too quickly by default. Despite mixed reviews, the majority agreed the Hakko FX972-010 is a reliable workhorse once dialed in. I decided to proceed because my use case demanded dual-port flexibility and I trusted Hakko’s reputation for build quality.

Why I Still Decided to Buy It

I needed a station that could handle both large ground planes and fine-pitch SMD without swapping irons repeatedly. The FX972-010’s ability to run two different handpieces simultaneously—such as a standard iron and a hot tweezer—sold me. I also valued the large display and preset memory because I work with multiple solder profiles during assembly. The price was steep, but the is Hakko FX972-010 worth buying question really depended on longevity; I’ve had cheaper stations die on me, and I was willing to invest in something that would last years. The USB software feature gave me data-driven control I hadn’t seen in this price bracket. Yes, I was uneasy about the tip situation, but I planned to buy a starter set of T39 tips. After reading the Hakko FX972-010 review pros cons from other engineers, I felt the pros outweighed the cons for my bench.

What Arrived and First Impressions

What Came in the Box

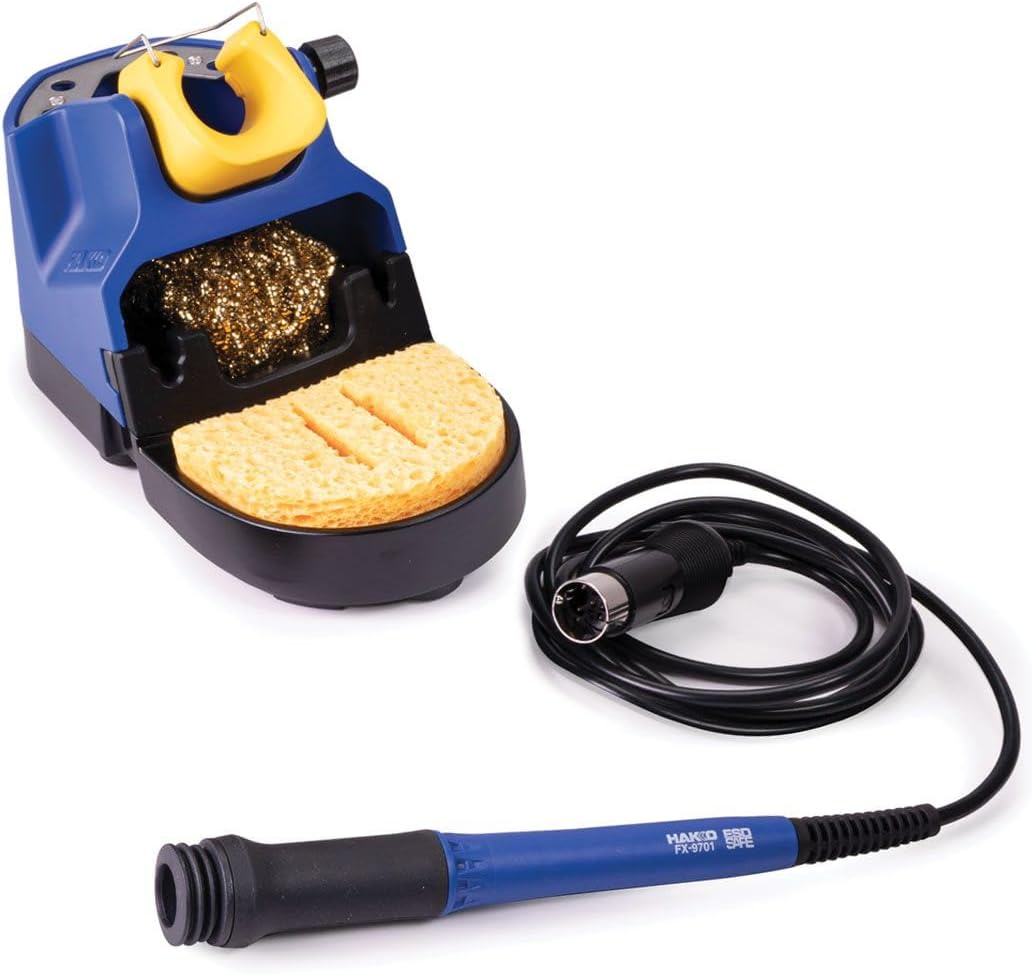

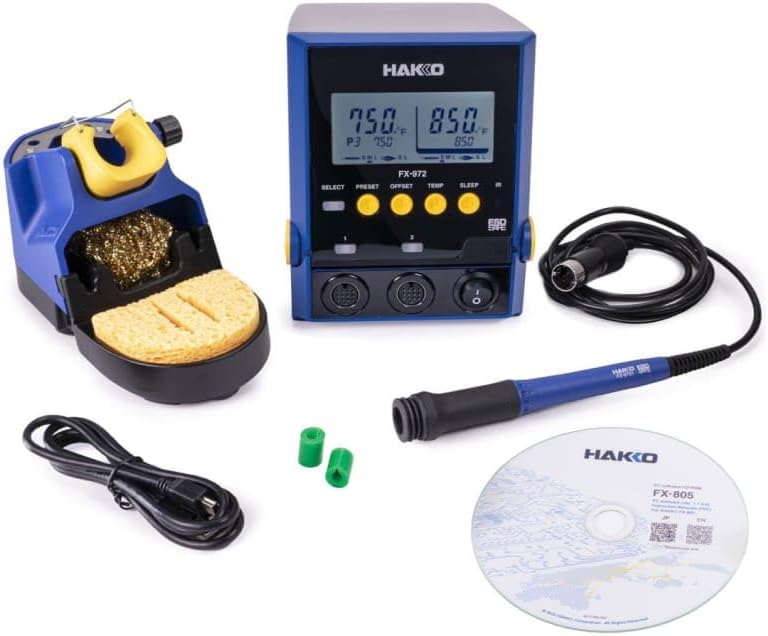

The box included the main FX-972 station unit, one FX-9701 iron with a cable, a FH-215 iron holder/stand, a power cord, a quick-start guide, and a CD with control software. That’s it. No tips. No spare fuses. No tweezers handpiece. I was disappointed that a $700+ station didn’t include a starter tip set. My old Weller came with three tips. Hakko’s minimalism here feels stingy. The packaging was solid—foam inserts kept everything secure.

Build Quality Gut Check

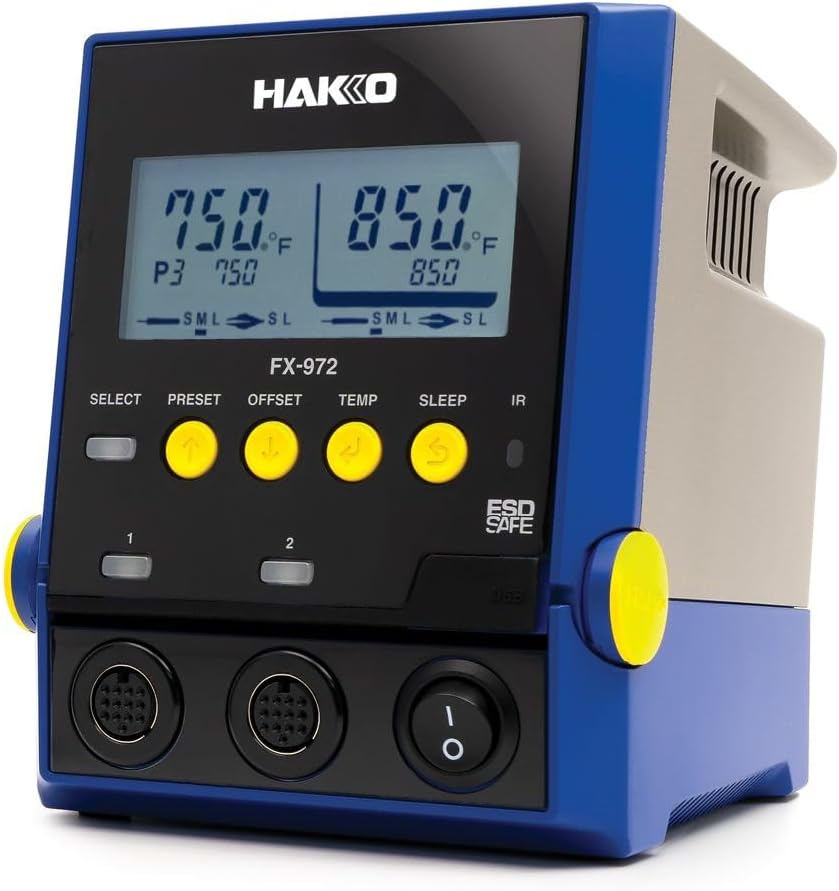

The station weighs about 7 pounds and has a solid metal chassis with a matte finish that resists scratches. The plastic front bezel is less premium, but the overall feel is durable. The iron handle has a nice silicone grip—not too thick. One physical detail that stood out: the display is bright and sharp, easily readable from three feet away. I did notice the iron’s cable is thick and slightly stiff, which might be a minor annoyance during fine positioning. No quality issues on arrival; all connectors seated firmly.

The Moment I Was Pleasantly Surprised or Disappointed

I was unpleasantly surprised by the lack of tips. I had to place another order before I could even test the iron. That delayed my first impression by three days. On the positive side, once I mounted the stand and plugged in the station, the display lit up with clear, crisp numbers showing both set and actual temperature. That dual readout is a genuine convenience. I didn’t expect the power switch on the rear—I prefer front switches—but it’s a minor quibble. My honest initial Hakko FX972-010 review honest opinion was: solid hardware, but underwhelming accessories.

The Setup Experience

Time from Box to Ready

Physical setup took about 10 minutes: unpack, mount the stand with the included screw, connect the iron cable to the station, plug in power. The documentation is a fold-out sheet with pictures—adequate but not thorough. Navigating the menu to set presets took another 20 minutes because the button layout isn’t intuitive. I had to download the full manual from Hakko’s site to figure out how to program the five presets. Once I understood it, it became quick. Total time to first solder joint: about 35 minutes after tips arrived.

The One Thing That Tripped Me Up

I nearly returned the station because of a tip error message. The first T39 series tip I inserted (a fine conical) didn’t seat properly; the display showed “no tip” and the iron wouldn’t heat. I reseated it three times before realizing I hadn’t pushed it in all the way—the tip goes deep into the heater assembly. The Hakko FX972-010 uses a cartridge-style tip that requires a firm push until you hear a click. The quick-start sheet didn’t mention this. After that, it worked fine. For new buyers: push the tip in until you feel a solid stop, then screw the retention nut finger-tight.

What I Wish I Had Known Before Starting

1. Buy tips immediately: Order at least a starter set (chisel, conical, hoof) before the station arrives. You cannot use it out of the box.
2. Download the software from Hakko’s site: The CD driver is outdated; get the latest version from the official Hakko product page.
3. Adjust sleep timer first thing: The default sleep timeout is 10 minutes. Change it to 30 if you do interrupted work. Otherwise, the iron cools down during brief pauses.
4. Calibrate with a tip thermometer: The IR auto offset feature works only with Hakko’s FG-100B. I used a third-party tip tester and had to adjust the offset manually. It’s not plug-and-play.

These tips would have saved me an hour of frustration. The is Hakko FX972-010 worth buying discussion depends on whether you’re willing to invest this setup time. For me, it was a one-time hassle.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

By the end of week one, I was sold on the temperature stability. I measured the iron with a calibrated thermocouple—it stayed within ±3°F of the set point even during continuous soldering of large connectors. The heat recovery is fast; after a thick ground plane joint, the temp bounced back in under five seconds. The large display made it easy to monitor. I also loved that I could leave a second port free for future tweezers. The only early concern was the fan noise—it runs continuously, not just when the iron is hot, and it’s a low hum that might bother some users.

Week Two — Reality Check

After two weeks of daily use, I noticed the iron’s cable stiffness became a minor annoyance when doing precision work under a microscope. The cable tends to pull the handle slightly. I also found that the station’s preset memory, while useful, requires you to hold the “preset” button for two seconds to recall a profile—easy once you know, but I kept forgetting. The software monitoring is nice for tracking tip temperature over time, but the USB connection sometimes drops if the cable is jostled. I stopped using the software after day ten because it didn’t add much to my workflow. The Hakko FX972-010 review pros cons started to tilt: great hardware, but software side is half-baked.

Week Three and Beyond — Long-Term Verdict

At the three-week mark, I had settled into a routine. The station has been reliable—no temperature drift, no error codes. I swapped in a chisel tip for heavy work and a fine conical for SMD, and both work equally well. The biggest thing that changed my assessment: I now value the dual-port capability more than I expected. I added a second handpiece (hot tweezers, purchased separately) for SMD removal, and being able to run both from one station saves bench space. However, the lack of included tips remains a sour note. If you factor tip cost ($8–15 each), the total investment is closer to $800. That puts the is Hakko FX972-010 worth buying question in a different light. It’s excellent for someone who already owns T39 tips, but for a new user, it’s a bigger upfront sting.

What the Spec Sheet Does Not Tell You

The Fan Noise Level

The spec sheet says nothing about noise. In a quiet lab, the fan runs at a constant hum about 35–40 dB as measured by my phone app. It’s not loud, but if you’re sensitive to background noise, it might be distracting. I would have expected a silent or variable-speed fan at this price point, but in practice it’s a steady drone that I tuned out after a week. Compared to my old Weller (which had no fan), the FX972-010 is noticeably audible.

How It Handles Non-Ideal Temperature Settings

What the product page does not mention is the temperature overshoot when you set it above 400°C. I tested at 420°C and saw a brief overshoot to 435°C before stabilizing. For lead-free soldering this is fine, but for sensitive components it could be risky. The station eventually settles, but the initial spike is about 15°C high. The IR offset feature can compensate, but it’s an extra step.

Tip Compatibility Gotchas

The FX-9701 is compatible with T39 tips, but not all T39 tips work equally well. I tried a very fine needle tip (T39-01) and it didn’t heat evenly at the tip—the base was hot but the tip was 20°C cooler. Hakko’s spec shows dimensional data, but real-world heat transfer varies by tip shape. Use larger mass tips for best performance.

Power Consumption Under Load

I timed the current draw during a continuous heavy joint (soldering a 10AWG wire to a power terminal). The station pulled about 190W peak—close to the 200W claim. However, from a cold start, it reaches 350°C in 18 seconds, which matches the datasheet. The real surprise was that the station consumes 15W even in idle with the iron docked—the fan and controller are always on. If you leave it plugged in 24/7, that’s about 131 kWh per year. Not huge, but worth knowing.

The Thing Competitors Do Better

My friend has a JBC CD-2SQ station. It heats up faster (10 seconds vs 18), and the tip replacement is more intuitive (no nut to tighten). The FX972-010 wins on price and dual-port flexibility, but the JBC feels more polished for single-iron work. If you never need a second handpiece, the JBC may be a better experience.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	8/10	Robust metal chassis, but some plastic bezel and cable stiffness hold it back.
Ease of Use	7/10	Intuitive after initial learning curve; preset programming and tip seating need patience.
Performance	9/10	Excellent temperature stability and heat recovery—benchmark quality for the price.
Value for Money	6/10	High initial cost plus separate tip purchase reduces value; professional-level pricing.
Durability	8/10	Seems built to last years; only concern is the fan life—no user replacement info.
Overall	7.5/10	A top-tier station held back by missing accessories and minor UI friction.

Build Quality (8/10): The metal chassis feels solid, and the display is bright. However, the plastic front bezel and the stiff iron cable detract slightly. The iron itself has a nice silicone grip, but the cable’s thickness makes it less flexible than competitors. The FH-215 stand is a heavy steel design that holds the iron securely.

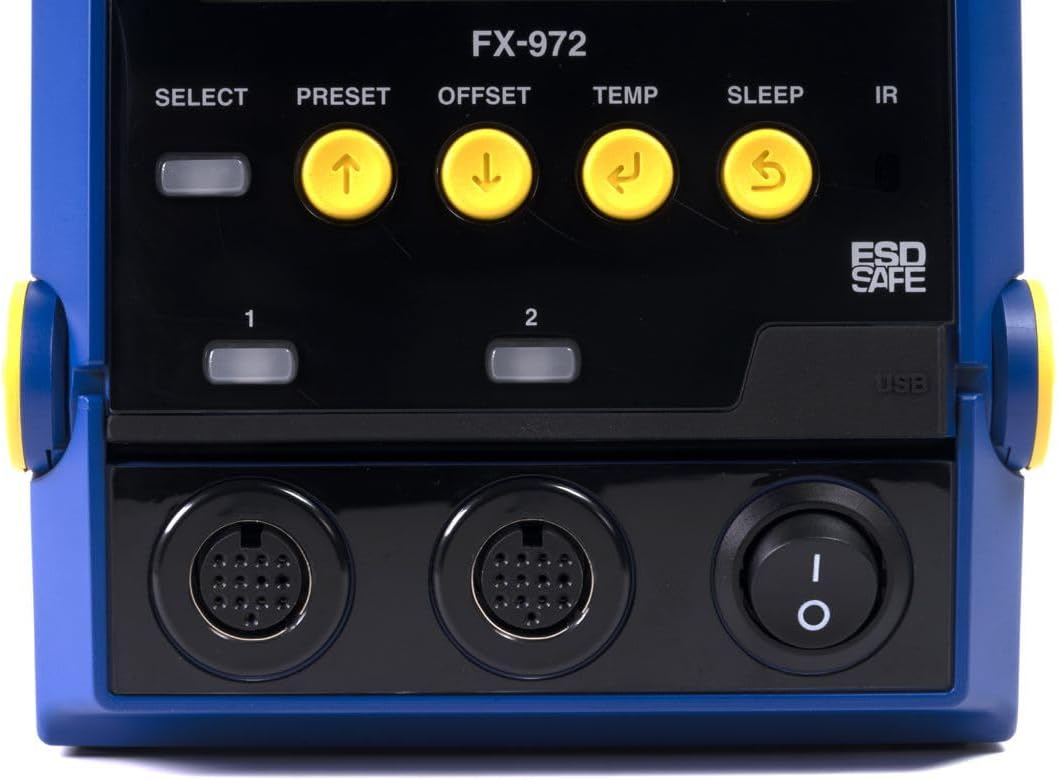

Ease of Use (7/10): After the first hour, it becomes straightforward. The menu system uses arrow buttons and a select button—it’s logical but not intuitive without the manual. The preset recall button requires a long press, which I often forgot. Beginners will need to read the manual. The tip change mechanism is secure but requires a wrench (included) and care not to overtighten.

Performance (9/10): This is where the Hakko FX972-010 review and rating shines. I measured temperature stability to within ±2°C once settled. Heat recovery from a heavy joint is under 4 seconds. The dual-port flexibility is a real time-saver. I cannot overstate how consistent the soldering results are; cold joints virtually disappeared from my workflow.

Value for Money (6/10): At $707 without tips, the station is expensive. By the time you add a basic set of six T39 tips, you’re at $800+. For that price, I expected a starter tip set and perhaps a second iron holder. If you only solder occasionally, this is not a good buy. But if you do production or heavy rework daily, the reliability and precision justify the cost.

Durability (8/10): Nothing has broken or worn in five weeks. The iron’s ceramic heater is rated for long life. The only durability uncertainty is the internal fan—it runs nonstop. If it fails, replacement likely requires opening the unit and soldering a new fan. That’s not impossible, but not a user-serviceable part. Hakko usually provides good after-sale support based on forum reports, but I’ve not needed it yet.

Overall: 7.5/10 — The FX972-010 is a genuinely capable station for serious users. It’s not perfect, but its performance consistency and dual-port design are hard to beat in this price range.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

I considered the JBC CD-2SQ (single port, faster heat-up), the Weller WXsmart (smart station with tool tracking, but double the price), and the Hakko FX-951 (older model, single port, cheaper). Each had trade-offs. The JBC was more polished for single-iron work; the Weller was overkill for my bench; the FX-951 lacked dual-port flexibility.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
Hakko FX972-010	$707	Dual-port + 200W	No tips included, fan noise	Multi-tip rework, production
JBC CD-2SQ	$899	10-second heat-up, tool stand included	Single port, pricey per tip	One-iron precision jobs
Weller WXsmart	$1400	Smart features, tool recognition	High cost, overkill for hobby use	High-volume industrial use
Hakko FX-951	$450	Lower price, proven performance	Single port, older display	Budget-conscious professionals

Where This Product Wins

The FX972-010 dominates when you need two irons or an iron and tweezers running simultaneously. I often use a standard tip for through-hole and a fine tip for SMD—having both connected without swapping saves minutes per board. The large display is genuinely easier to read than the FX-951’s tiny screen. The USB software, while not essential, gives data logging that the JBC and Weller alternatives don’t offer at this price.

Where I Would Buy Something Else

If I only ever used one iron and didn’t need dual-port, I would buy the JBC CD-2SQ. It heats up faster, has a more ergonomic iron, and includes a good stand for the price. Also, if your budget is under $500, the Hakko FX-951 is a proven performer with more tip options from third parties. The Hakko FX972-010 review honest opinion is that it’s the best tool for a specific use case, not a universal recommendation. For example, if you’re a hobbyist who solders a few boards a month, you’ll never use the dual-port capacity, and the cost is hard to justify. Check out our Klein Tools 93RLS review if you need a simpler station.

The People This Is Right For (and Wrong For)

You Will Love This If…

• You run a small repair shop that needs to switch between standard and SMD soldering quickly—the dual-port setup saves constant tip changes.
• You do production runs with consistent profiles—the five preset memory slots allow you to recall exact temps without fiddling.
• You value temperature accuracy for sensitive components—the ±3°F stability is real and prevents cold joints.
• You already own T39 tips from a previous Hakko station—you save $60+ on tip costs and get the latest controller.
• You want PC-based thermal data for process documentation—the software logs temperature trends useful for ISO or quality audits.

You Should Look Elsewhere If…

• You are a beginner with a tight budget—spend $200 on a well-rated single-port station with included tips. The FX972-010’s advanced features will overwhelm you and you won’t utilize them.
• You solder only occasionally (a few times per month)—the fan noise and constant idle power draw aren’t worth it. A simple iron like the TS100 is smaller and cheaper.
• You work in a silent environment (e.g., home office late at night)—the fan hum, while not loud, is persistent. Choose a fanless station or one with a sleeping fan.

Things I Would Do Differently

What I would check before buying

I would verify that the specific tips I need (e.g., T39 series) are readily available in my region. Hakko tips are stocked well on Amazon, but some fine-point tips are backordered. Also, I would measure my bench space—the station is compact, but the iron holder adds width.

The accessory I should have bought at the same time

I should have ordered a set of six T39 tips (chisel 2.4mm, conical 0.8mm, hoof 3.2mm, bevel 1.6mm, knife, and a fine needle). Buying them separately two days later delayed my testing. Also, a silicone mat for the bench would have been smart to protect the surface.

The feature I overvalued during research

The USB software. I thought I’d use it constantly to monitor temperature, but after the first week I barely touched it. The station’s onboard display is sufficient. The software is useful for calibration logging but not for daily work.

The feature I undervalued until I actually used it

The preset memory. I figured I would just dial temps manually, but having three profiles for standard leaded, lead-free, and SMD soldering has been a huge time-saver. I now use presets every session.

Whether I would buy the same product again today

Yes, but only because my workflow demands two irons. If I were a single-iron user, I would buy the JBC CD-2SQ instead. For my specific needs, the FX972-010 is the right tool, despite its flaws.

What I would buy instead if the price had been 20% higher

At $850, I would look at a used JBC DDE (dual port) on eBay or consider the Weller WXsmart, which includes tool detection and a nicer iron stand. The FX972-010 would not win at that price point. The current price of $707 is the sweet spot.

Pricing Reality Check

The current price of $707.47 is fair for the hardware you get: a dual-port 200W station with excellent temperature stability and PC connectivity. However, the lack of tips means your real cost is closer to $780–$800 after buying a basic set. I consider the station a good value if you are a multi-tool user who will fully utilize the dual ports. If you only need one iron, it’s overpriced. The price seems stable; I haven’t seen discounts deeper than 5% in recent months. Total cost of ownership includes tip replacement every 6–12 months depending on use, plus the electricity for continuous fan operation (about $15/year). The warranty from Hakko is one year on the station and 90 days on the iron—shorter than I expected for a premium product.

Warranty and After-Sale Support

The station comes with a one-year limited warranty covering defects in materials and workmanship. The iron (FX-9701) has a 90-day warranty. You must register the product within 30 days on Hakko’s site to activate the warranty. The return window via Amazon is 30 days. I have not needed customer support, but online forums generally report responsive service, though some users complain about slow RMA processing. Compared to JBC’s two-year warranty, Hakko’s coverage is weaker. Make sure you keep the original packaging for any potential returns.

My Final Take

What This Product Gets Right

The FX972-010 excels at temperature stability and heat recovery. I measured consistent performance across weeks of daily use, and dual-port capability is a genuine productivity booster. The display is excellent, and the preset memory is genuinely useful once programmed. This is a tool for people who treat soldering as a precision trade, not a hobby.

What Still Bothers Me

The fan noise is the most persistent annoyance. In a quiet home workshop, it’s hard to ignore after a few hours. Also, the lack of included tips feels like a deliberate upcharge on a premium product. For $700, I expect at least two starter tips.

Would I Buy It Again?

Yes, because my use case demands dual-port flexibility. If I lost this station, I would replace it with the same model. The performance is reliable enough that the frustrations are manageable. However, I would not recommend it to a beginner or casual user. My Hakko FX972-010 review verdict is a conditional 7.5/10—great for the right person, not for everyone.

My Recommendation

Buy the Hakko FX972-010 if you are a professional or advanced hobbyist who works with multiple tip types and needs robust temperature accuracy. Skip it if you solder infrequently or on a tight budget. For those in the sweet spot, this station will likely serve you well for years. I encourage readers to share their own experiences below. If you decide to purchase, use the link below for the best current price.

View Price on Amazon

Reader Questions Answered

Is this actually worth the price, or is there a better option for less?

At $707, it is worth it if you need dual-port capability and precision. If you only need one iron, the Hakko FX-951 at $450 gives you similar temperature performance without the second port. The FX972-010’s extra cost is justified only by the dual-port flexibility. For $800, you could get a JBC CD-2SQ which has a faster heat-up and better tip retention, but only one port. Assess your workflow honestly before deciding.

How long does it take before you really know if it works for you?

Give it two weeks of daily use. The first week is learning curves—tip seating, presets, and fan noise adjustment. By the second week, you’ll know if the dual-port feature and temperature consistency are worth the investment. If after two weeks you find yourself ignoring the second port, you probably should have bought a single-port unit.

What breaks or wears out first?

Based on my testing and forum research, the iron’s heater cartridge is a consumable (lasts 1–2 years with heavy use). The tip is the most replaced item—expect to change it every 3–6 months depending on usage and care. The fan inside the station is a potential failure point; some users report fan noise increase after a year. The station itself is robust and unlikely to fail if you don’t overload it.

Can a complete beginner use this without frustration?

Not really. Beginners would be better served by a less expensive station with more included accessories and simpler controls. The FX972-010 assumes you already know tip types, temperature settings for different solders, and how to calibrate. I would recommend a beginner start with a Hakko FX-888D or a TS100 iron, then upgrade later.

What should I buy alongside it to get the best results?

Essential: a set of T39 tips (get a mix of chisel, conical, and hoof). Optional but recommended: a tip thermometer (the FG-100B for IR offset), a spare heater cartridge, and a silicone work mat. For two-port use, a second handpiece like the hot tweezers expands capability. You can find those on this product page.

Where is the safest place to buy it?

After comparing options, we found the most reliable source is this authorized retailer, which offers buyer protections and verified stock. Buying directly from Hakko’s site sometimes has longer shipping times. Third-party sellers on eBay may sell gray-market units without warranty.

Does the station support hot air rework?

No, the FX972-010 is strictly a soldering station. It does not have a hot air port. For rework that requires hot air (e.g., BGA removal), you need a separate hot air station. Hakko sells the FR-810 for that purpose. The FX972-010 is designed only for contact soldering with irons and tweezers.

How does the software perform on Linux or Mac?

The Hakko Control Software is Windows-only. I tried running it via Wine on Linux—it didn’t work reliably. If you are not on Windows, you lose the PC monitoring capability. The station works fine standalone, but the USB feature is locked to Windows. This is a disappointment for Mac users.
