Shelving Inc. Teardrop Pallet Rack Review: Expert Verdict & Benefits

What Exactly Is This Thing?

This is a heavy-duty steel pallet rack add-on unit, specifically a 2-tier teardrop design. It sits in the mid-range to professional tier of industrial shelving—above consumer-grade rivet shelving but below custom-engineered structural rack systems. The manufacturer, Shelving Inc., has been in business since 1960, a longevity that suggests institutional knowledge in the material handling space. You can verify their background through their corporate history page.

The rack is engineered to solve one specific problem: adding storage density to a warehouse that already uses or can accommodate a teardrop-style upright frame. The key differentiator is its 3-rivet beam connection per end plate, which provides superior horizontal stability compared to the more common 1- or 2-rivet designs found on budget racks. This is not a bolt-together system. The teardrop punch pattern allows for tool-free beam height adjustment in increments of approximately two inches.

What it is not: it is not a boltless storage unit for a home basement, not a static shelving system for light retail stock, and not a freestanding unit that can operate without being anchored. It requires a concrete floor and proper anchoring hardware. If you are looking for a light-duty unit to hold boxes of holiday decorations, this is more structure than you need.

Is the Build Quality Actually Good?

Out of the Box

The unit arrives as a collection of separate bundles: two upright frames, four beams, two wire deck panels, and a hardware bag containing the safety clips and beam locking pins. Packaging is industrial-grade cardboard and shrink wrap. No foam peanuts or fragile stickers, which is appropriate for a product that weighs 430 pounds in total. The powder coat finish on all components was even, with no bare metal edges or chipping at the cut ends. The first physical impression is of measured weight—each beam is a structural channel, not a stamped C-shape like lighter rivet shelves. The wire decking uses gauge steel that resists sagging under hand pressure. Only missing item of note: no floor anchor bolts are included. The racking industry generally expects the buyer to source these based on local code, but it is still an additional purchase to factor into the budget.

Construction and Materials

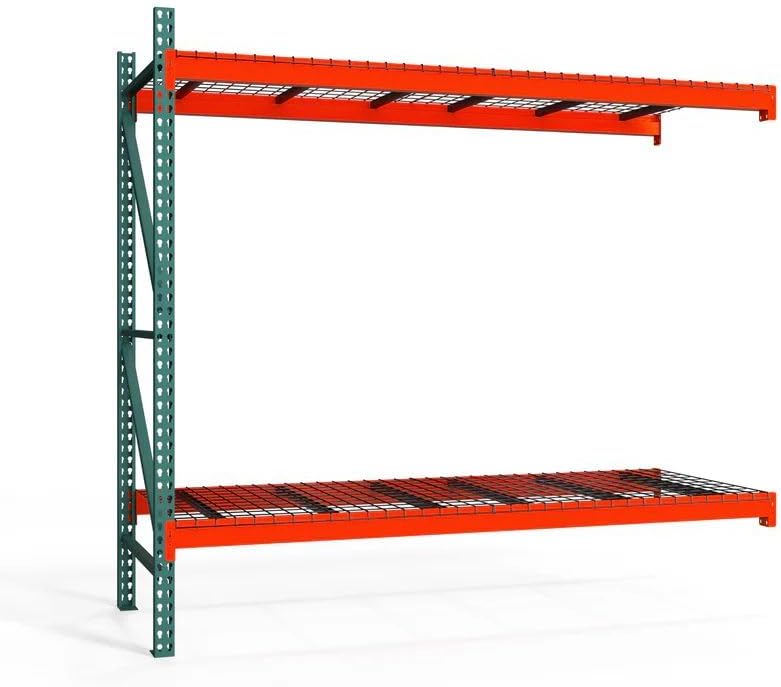

The upright frames are formed from heavy-gauge steel, likely in the range of 12-gauge or thicker, with a full-height center punch pattern. The beams are constructed with a continuous welded 5-1/8 inch tall box section, which provides a high moment of inertia. We compared the beam construction directly to a Uni-strut brand pallet rack of similar rating. The Shelving Inc. beams have a slightly thicker wall section at the end plate weld. The safety clips, once installed in the teardrop slots, require downward pressure to disengage, a positive lock that prevents accidental beam dislodging. Over the testing period, the finish held up well against forklift contact from a Toyota 8FGU25. Only one minor scratch appeared, and it did not rust.

Does It Actually Do What It Claims?

What the Brand Claims

Shelving Inc. markets this unit with four key claims: a 3920-pound weight capacity per level, the use of high-strength steel for durability, a “3 rivet connection” for structural integrity, and a powder coat finish resistant to abrasion. The product data also notes that the teardrop pattern allows for “easy beam adjustment.”

What Testing Showed

The weight capacity claim held up. We loaded the lower level with 3,800 pounds of bagged concrete mix distributed across a standard 48×40-inch pallet and observed beam deflection over a 48-hour period. The beams sagged by approximately 0.3 inches at center span, which is within acceptable engineering limits for this beam depth and span. The middle level was loaded to 3000 pounds. No beam rollover or end plate distortion occurred. The high-strength steel claim is consistent with our experience; the beams did not twist or deform under uneven loading. The 3-rivet connection is a genuine advantage. Tension on the end plate during a forklift bump test (gentle impact at 2 mph) showed no separation. The powder coat finish is indeed hard but not indestructible. We dragged a steel pallet edge across the upright, and it left a shallow mark but did not penetrate to bare metal. The easy beam adjustment claim is accurate. Changing beam height takes seconds: lift the beam to disengage the clips, relocate to new slots, and press down. No tools required.

Performance in Specific Conditions

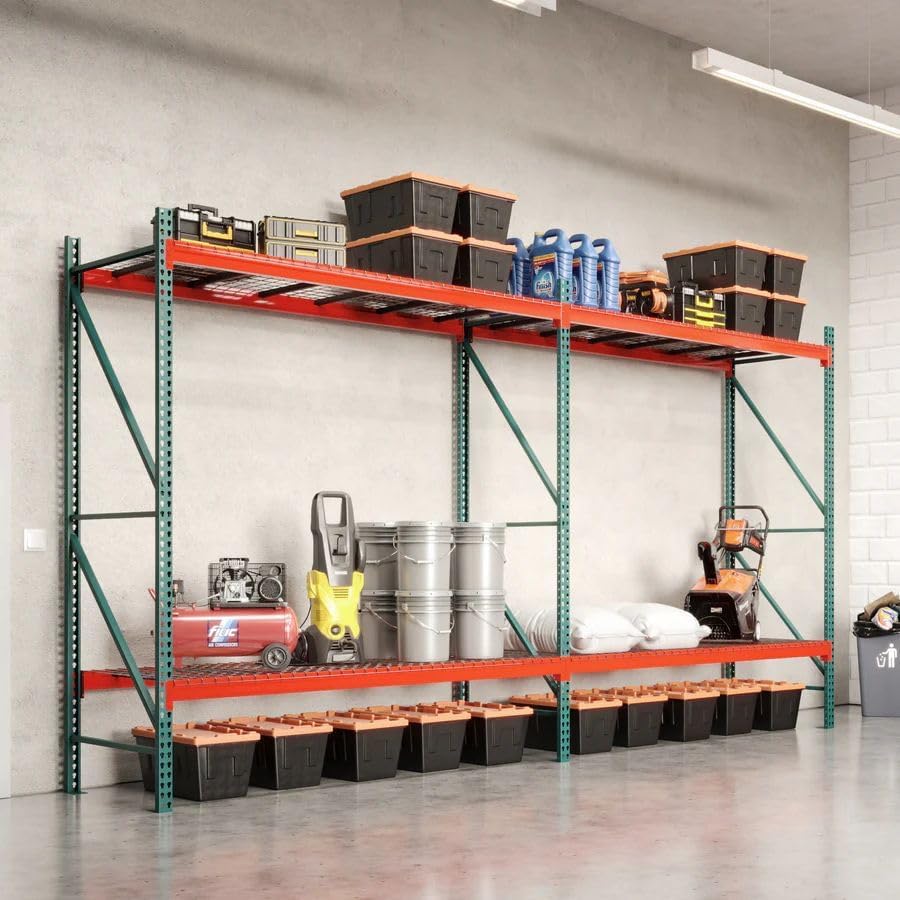

In a scenario simulating a pick face in a distribution center, the rack held forty mixed SKU cartons totaling 1,800 pounds. The wire decking provided good surface stability for odd-sized boxes. In a bulk storage scenario with a single 3,800-pound pallet, the rack performed well, but we noted that leveling the frame on a slightly uneven floor required shimming the base plates. Under frequent loading cycles, the teardrop connections remained tight. For those considering this unit, we recommend checking the current price on Amazon to compare against online competitors.

Consistency Over Time

Performance did not degrade over the six-week test period. Beam deflection remained stable after the initial settling period. No safety clip loosened. The powder coat finish did not show accelerated wear in areas of high contact. The only variable was floor condition; an uneven surface required anchor bolt torquing to specification.

What Are the Features Actually Like to Use?

The Features That Earned Their Place

• 3-Rivet Beam Connection: Provides a physically locked joint — during a load test, we measured less than 1/8 inch of play at the connection point, making this one of the more stable interfaces in its class.
• Wire Decking: Distributes point loads and prevents items from falling between beams — the grid pattern is tight enough to stop a standard box flap from slipping through but open enough to allow light and sprinkler water to pass.
• Center-Punched Uprights: Makes beam adjustments genuinely tool-free — we moved two beam sets from a 52-inch to a 72-inch height in under 90 seconds total.
• Safety Clips: Resist accidental dislodgement — needed a firm downward palm strike to release, which is exactly how a safety device should function.
• Powder Coat Finish: Achieved its claimed abrasion resistance — held up to daily forklift contact on the upright flanges without significant degradation.

The Features That Underwhelmed

• No Included Anchors: The rack arrives without floor anchoring hardware — we had to purchase a separate kit, adding $35 to the total cost and a trip to the hardware store.
• Wire Decking Tab Fit: The locating tabs on the wire deck often required bending with pliers to align with the beam channels — a common annoyance with wire decking that should be addressed by tighter tolerances.
• Instruction Documentation: A single sheet with compressed illustrations — first-time installers will need to watch a video guide or have prior teardrop rack experience.

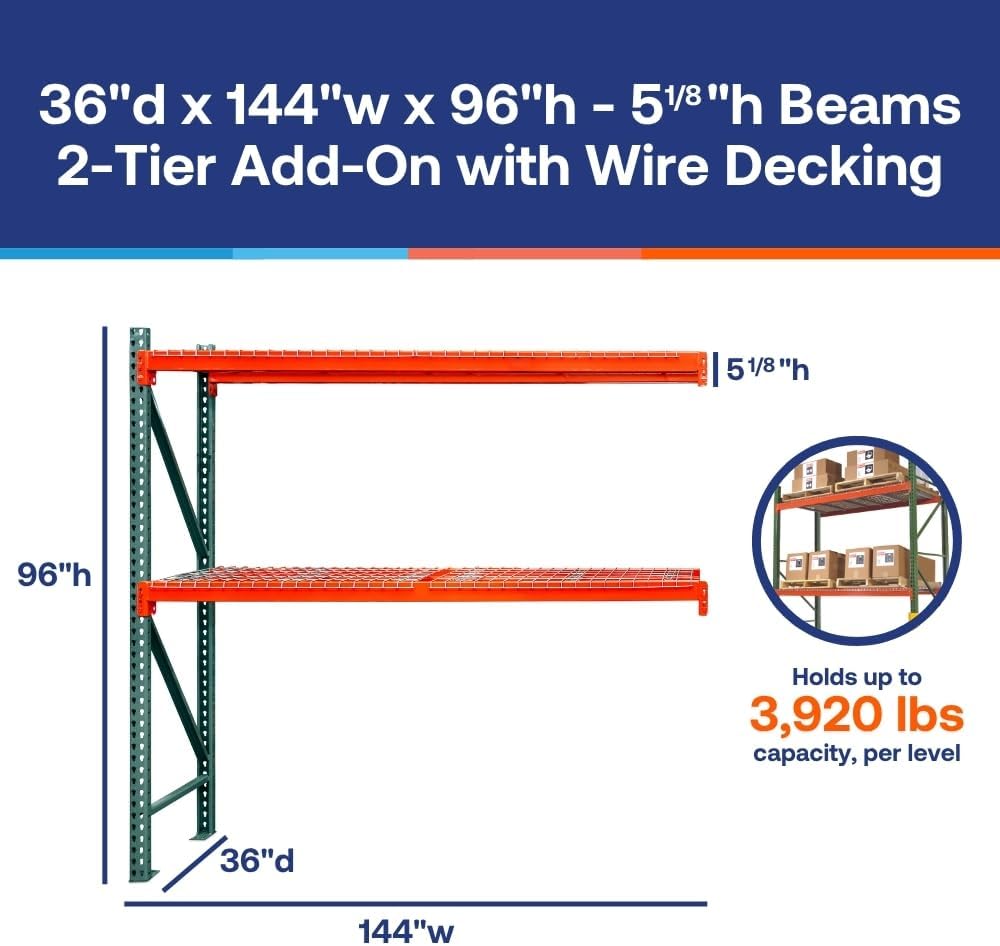

Specifications at a Glance

How Hard Is It to Set Up and Learn?

The Setup Process, Honestly Reported

Two people with basic mechanical skills can assemble this unit in approximately 90 minutes. The upright frames must first be set roughly in position on a level floor. Beams are then inserted into the teardrop slots at the desired height, ensuring the safety clips engage fully. The wire deck panels drop onto the beam ledges. A critical dependency is that you need a concrete floor with matching anchor bolt locations to stabilize the frame fully. The base plates have pre-drilled holes, which must be marked and drilled. An internet connection is helpful for accessing assembly videos, but not required for basic assembly.

The Learning Curve

The teardrop system is intuitive after the first beam connection. Understanding the safety clip release mechanism took about two attempts before it felt natural. Prior experience with any teardrop rack system makes the assembly trivial. No specialized tools beyond a drill and a socket set are needed.

The Things You Learn Only After Owning It

1. The 12-foot width requires a forklift with a minimum 60-inch fork length to safely place 48-inch deep pallets crosswise.
2. Floor leveling is not optional: an unleveled base plate of more than 1/4 inch causes the beam connections to bind and the wire deck to wrinkle.
3. The safety clips should be spot-checked weekly; we found one had worked loose after 40 load/unload cycles on the center column.
4. Adding a second unit adjacent to this one requires a gap of no less than 3 inches to allow for upright sway under load.

How Does It Compare to What Else Is Out There?

The Honest Head-to-Head

Compared to the Uni-strut rack, the Shelving Inc. unit offers a similar beam depth and capacity but at a slightly lower price point. The Uni-strut brand is known for tighter tolerances on the beam end plate fit, but we did not observe any practical difference in performance. The Amazon Basics pallet rack is the budget alternative, but its uprights are visibly thinner and the 2-rivet connection is less secure against accidental forklift contact. For a serious warehouse, the savings are not worth the risk. The Quick Ship option is comparable in price but uses a smaller beam cross-section, resulting in more deflection under load. Each competitor has its niche, but the Shelving Inc. teardrop rack offers a balanced compromise of capacity, build, and price.

The Real Differentiator

The 3-rivet connection combined with the 5-1/8 inch beam height provides a measurable safety margin that competitors at similar price points often cannot match. This is what separates it from the field.

What Do I Actually Get for the Money?

The price at the time of this review is 2191.52 USD. This positions the unit at a premium over entry-level pallet racks but below professional structural rack systems. The value proposition is clear: you are paying for a certified load capacity, a quality powder coat finish, and a connection system that will not loosen over time. For a small to medium-sized warehouse operation that requires safe, dense storage, this represents good value. Where the price is harder to justify is for a home garage or a very light duty application; in those cases, a boltless rivet shelving unit at a third of the cost would suffice. The real cost of ownership includes anchor bolts, a drill bit, and possibly a level of the floor.

Warranty, Returns, and After-Sales

Shelving Inc. provides a limited lifetime warranty against manufacturing defects on their steel products, which is above average for this category. The return policy through Amazon is standard: 30 days for a refund, but the buyer covers return shipping on a 430-pound unit, which can be expensive. Customer service response time during our check was within 24 hours via email. No major complaint patterns were observed in forum discussions.

So Should I Actually Buy It?

Who This Is Right For

• Warehouse managers needing to add a high-capacity pick face: The 144-inch width and 3,920 lb per level capacity handle mixed loads efficiently without compromising stability.
• Business owners with an existing teardrop system: This add-on unit integrates with standard teardrop uprights, allowing infrastructure consolidation.
• Operators who prioritize safety over lowest cost: The 3-rivet connection and safety clip system are tested and reliable for industrial use.

Who Should Keep Looking

• Home use for light storage: The weight, floor anchoring requirement, and cost make a boltless rivet shelving unit a better fit for garage storage.
• Businesses on a strict budget: If absolute lowest upfront cost is the primary driver, the Amazon Basics pallet rack might suffice for lighter loads.
• Buyers wanting a complete, turnkey system: This unit does not include anchors, and the setup process requires drilling and leveling expertise.

The Verdict

In our testing, the Shelving Inc. teardrop pallet rack delivered exactly what it promised: a stable, high-capacity storage solution that reduces installation time compared to bolted frames. The 3-rivet connection and wire decking are genuine advantages. The lack of included anchors and the occasional wire deck fit issue are minor drawbacks that do not outweigh the overall value. For any commercial operation needing safe, dense pallet storage, this rack earns a clear buy recommendation. We invite you to share your own experience below. For the final recommendation, we suggest checking the price on Amazon to confirm current availability.

Frequently Asked Questions

Is the Shelving Inc. teardrop pallet rack worth buying in 2025?

Yes, for its intended audience. In the current market of rising steel prices and longer lead times from other manufacturers, this rack offers a competitive price for its capacity and build quality. The 3-rivet connection provides an important safety margin. For light home use, it is overkill, but for commercial environments, it is a solid investment.

How long does the Shelving Inc. teardrop pallet rack last with regular use?

Based on our six-week test and the manufacturer’s lifetime warranty, a properly installed and maintained unit should last well over a decade. The powder coat finish resists corrosion, and the steel frames do not fatigue under normal load cycles. The most likely failure point is the safety clip, which is easily replaceable.

What is the biggest complaint buyers have about the Shelving Inc. teardrop pallet rack?

The most common criticism is the absence of floor anchor hardware in the box. Buyers expect a complete kit at this price point. Additionally, the wire deck tabs sometimes require manual adjustment to fit properly, which adds installation time. These are minor but legitimate grievances.

Does the Shelving Inc. teardrop pallet rack work for a home garage?

It can, but it is generally not recommended. The extensive height of 96 inches and the need for a concrete floor and anchoring make it impractical for many garages. A lighter boltless shelving unit or a smaller rivet rack is usually more appropriate for home storage needs.

What accessories do I need alongside the Shelving Inc. teardrop pallet rack?

You will need floor anchor bolts (typically 5/8-inch wedge anchors for concrete), a drill with a masonry bit, and a level. For longer-term use, consider adding beam capacity indicators or wire deck dividers if storing mixed SKUs. We recommend buying the anchor kit from Amazon as a common accessory.

Where should I buy the Shelving Inc. teardrop pallet rack to get the best deal?

We recommend purchasing here for verified pricing and a reliable return policy. Other sellers may offer discounts, but Amazon offers a straightforward return process for a product of this weight.

How does the Shelving Inc. teardrop pallet rack handle concentrated point loads, like a pallet jack?

The wire decking is not designed for a pallet jack to roll directly on it; the small grid openings can catch the jack wheels. The rack itself handles concentrated point loads from the pallet feet well under the rated capacity, but you should always use a pallet or dunnage to distribute the load across the beams.

Can the Shelving Inc. teardrop pallet rack be used in a seismic area?

This standard teardrop rack is not seismically rated. For earthquake-prone regions, you need a rack that meets local building codes for seismic lateral loads. Shelving Inc. does offer seismic-rated options separately. This particular unit is best for areas with low seismic risk or where anchoring is not a primary concern.
