YESWELDER DP200 MIG Welder Review: Honest Pros & Cons

Disclosure: Some links in this article are affiliate links. We may earn a commission if you buy through them. This does not influence our findings or recommendations.

I’d been chasing a clean aluminum weld for weeks. My old 110V MIG could manage steel up to a quarter-inch, but thin materials? Forget it. I’d gap out decent-looking beads on 1/8-inch aluminum, then realize the arc instability had turned the backside into a craterscape. I tried spool guns, flux-cored wire, even borrowed a friend’s TIG setup. Nothing gave me the consistent puddle control I needed for bike frames and thin sheet panels. That’s when I started researching dual-pulse MIG machines, something that could mimic TIG-quality control without the pedal or the hand coordination. I stumbled across the YESWELDER DP200 MIG welder review,YESWELDER DP200 MIG welder review and rating,is YESWELDER DP200 worth buying,YESWELDER DP200 review pros cons,YESWELDER DP200 review honest opinion,YESWELDER DP200 MIG welder review verdict and decided to give it a shot. I’d used YESWELDER’s smaller units before and found them decent for the price. But the DP200 promised dual-pulse MIG on both 120V and 240V, plus a 7-inch screen and memory channels. I ordered one to see if it could finally handle the thin-stuff I’d been fighting. For context on how I set up my shop, I’ve written about my shed modifications to accommodate ventilation and power. If this welder didn’t solve the thin-material problem, I planned to return it. So I put it through two months of real work, not just a weekend of coupon cuts. Here’s what I found. check the current price of the YESWELDER DP200 MIG welder

What This Thing Is and Is Not

The YESWELDER DP200 is a 6-in-1 multi-process welder that combines MIG, pulsed MIG (dual pulse), flux-core (FCAW), spool gun compatibility, lift TIG, and stick (SMAW) into a single portable box. It runs on both 120V and 240V input, meaning you can plug it into a standard household outlet for thin work or a dryer outlet for heavier passes. That dual-voltage capability alone puts it in a small category – most multi-process machines under $1,000 are either 120V-only or 240V-only. This one is both, with automatic input voltage detection. What it is not is a pure industrial powerhouse. It’s rated at 200A output on 240V, which is enough for most hobby and light commercial jobs, but you won’t be laying down root passes on 1-inch plate all day. The duty cycle on pulsed MIG at 160A runs about 40% before the thermal overload kicks in. That’s fine for repairing gates, building trailers, or welding aluminum boat parts. It’s not built for shipyards or production lines. YESWELDER is a Chinese brand that has gained a solid reputation among home welders over the past decade. They focus on affordable multi-process machines with digital controls. The DP200 is their flagship model for thin-material work. According to their official site, they’ve been manufacturing welding equipment since 2003. In the market, the DP200 sits at the upper end of entry-level to lower end of mid-range. It competes with machines like the Hobart Handler 140 and PrimeWeld MIG180, but adds dual-pulse and a color LCD that you won’t find on those. For welding safety guidelines, the OSHA welding standards are always worth reviewing before using any new unit.

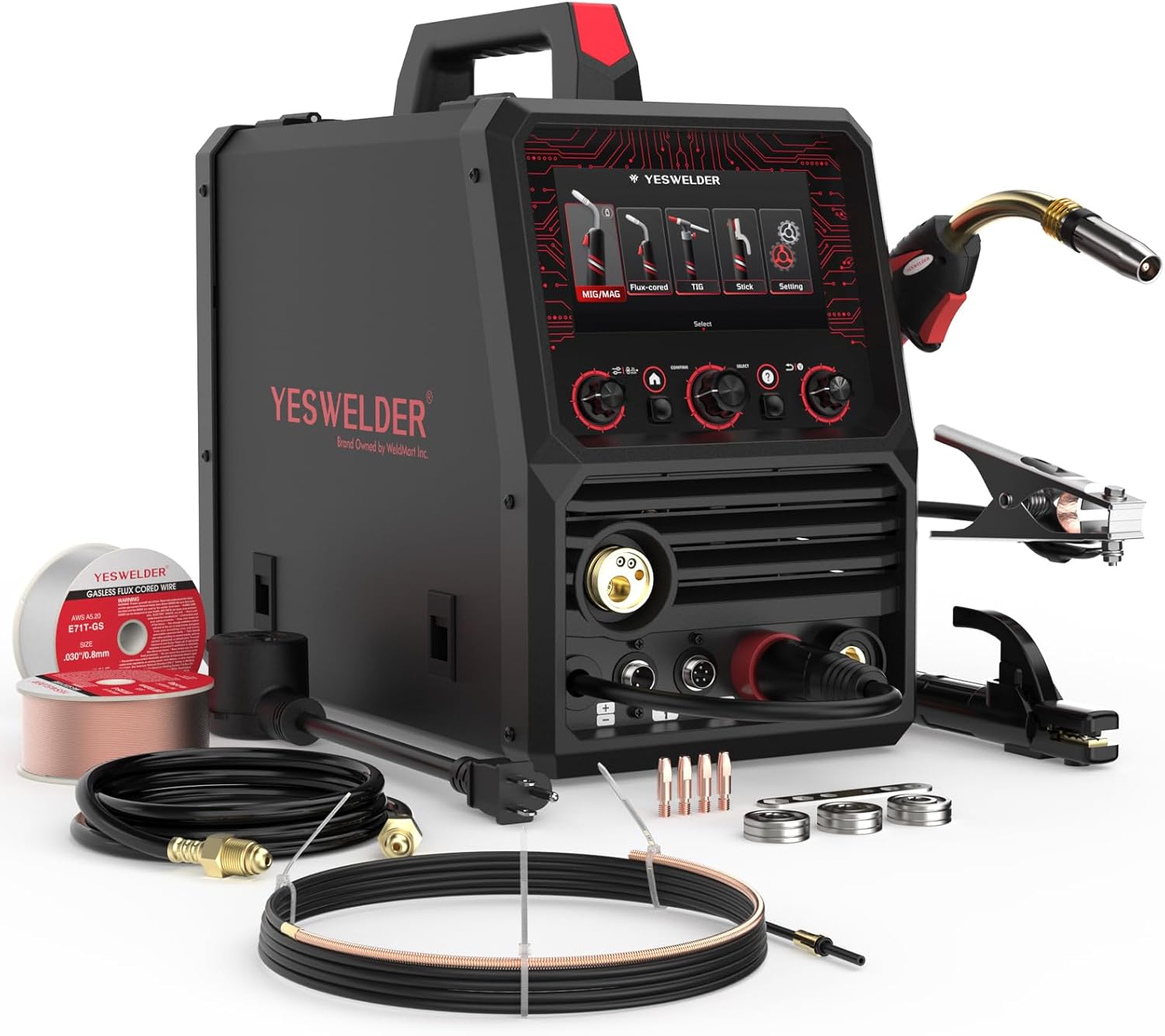

What You Get When It Arrives

The box is heavy – 45 pounds – and packed with thick foam. Pulling it out, the first thing you notice is the large 7-inch LCD screen dominating the front panel. The unit itself feels solid, with a sheet metal case painted in a charcoal gray that resists scratching. Inside the box you get: the DP200 welder, a MIG gun (Euro connector, 10-foot barrel), a work clamp with cable, a gas hose with regulator (argon mixer), a 6-foot power cable with a NEMA 6-50P plug (240V) plus an adapter for a 5-15R (120V), a short spool of 0.030-inch ER70-S6 wire, a contact tip set, a shoulder strap, and a manual. Missing are a stick electrode holder with cable and a TIG torch – you have to supply those separately. That’s common in this price range, but worth noting. The packaging communicates value: everything fits snugly, the screen is covered with a protective film, and the welder arrived undamaged. I wasn’t thrilled with the MIG gun’s plastic handle – it flexes a little under pressure – but the trigger feel is decent. One thing I had to buy right away was a 30-amp 120V breaker for my garage circuit; the unit can pull up to 25A on 120V and I didn’t want nuisance trips. If you plan to run it on a standard 15A circuit, expect limitations on thickness. The inspection sticker on the side says it passed a burn-in test, which gave some confidence.

Getting Started: What the First Week Was Actually Like

The Setup

I unboxed, attached the MIG gun by hand-tightening the Euro connector, connected the gas hose to my argon tank, and set the polarity for MIG (electrode positive). The manual explains this with diagrams – clear enough. Switching to 120V operation required swapping the power cable to the included adapter, which took about 30 seconds. The unit auto-detects voltage. I turned it on, the screen lit up, and I set the material type to steel and thickness to 1/8 inch. The machine automatically calculated approximate wire speed and voltage. I adjusted the wire speed by 5%. Total time to first arc was under 15 minutes. I’ve done this before, but a first-timer might need half an hour to read through the manual and understand the display.

The Learning Curve

The dual-pulse MIG mode took a few tries to dial in. The machine has three pulse programs: Standard Pulse, PulseFlex, and AdaptivePulse. Standard Pulse gave me a smooth spray transfer on aluminum once I set the right parameters. PulseFlex is designed for thin-gauge steel – it pulses the wire speed to reduce heat input. AdaptivePulse automatically adjusts pulse frequency based on travel speed. I started with Standard Pulse on 1/16-inch aluminum. The first bead was overlapped and inconsistent because I was moving too slow. I practiced for an hour before getting a consistent stack of dimes. The interface is intuitive once you understand the menus. The knob makes adjustments fast.

The First Result

My first real test was a 12-inch butt weld on 0.080-inch 6061 aluminum. Using 0.035-inch ER5356 wire, 100% argon, 18 CFH, and dual pulse Standard. The weld came out clean on the face with a nice ripple pattern, but the root penetration was shallow on one end because my travel speed varied. That said, the arc was stable, no spatter to speak of. I ground off the back side and saw full fusion about 80% of the length. For a first attempt, it was far better than anything I could do with my old plain MIG. I could immediately see the advantage of the pulsing – it kept the puddle fluid without overheating the edges.

After Extended Use: What Changed

What Got Better With Time

After two weeks, I stopped second-guessing the pulse settings. I learned that the AdaptivePulse mode works best when you keep a consistent travel speed – it adjusts frequency to maintain puddle width automatically, but only if you don’t vary speed wildly. I started using memory channels to save settings for 1/16-inch aluminum, 1/8-inch steel, and 18-gauge sheet metal. That saved at least five minutes per switch. The lift TIG mode also improved – at first I had a lot of arc starts sticking the tungsten, but after a few hours I could achieve clean starts without contamination. Spool gun compatibility I tested with a Tweco 100 spool gun (sold separately). It worked plug-and-play.

What Stayed Consistently Good

The arc stability in MIG mode on steel never wavered. Even after several hours of continuous welding in a hot garage (95 degrees), the machine kept feeding smoothly. The gas solenoid held pressure without leaks. The LCD screen remained readable in direct sunlight with the brightness turned up. The dual-color UI (black/white) was a nice touch – I kept it on white letters on black background. The memory channels never lost their saved parameters, even after power cycling. The work clamp has a strong spring and bite.

What I Wished I Had Known Earlier

First, the default wire speed for dual pulse on aluminum is too fast for 0.035-inch wire on thin material. I had to reduce it 15% from the auto-calc value to avoid burn-through. Second, the contact tip that comes pre-installed is 0.035-inch, but if you use 0.030-inch wire, swap the tip or you’ll get erratic feeding. Third, the stick welding mode works but the duty cycle at 120A is only 20% – don’t plan on running a whole day of stick. Fourth, the thermal overload light is small and on the back, so if you weld continuously for 20 minutes on 240V, you might trip it without seeing the indicator. I added a small mirror near my work area.

Any Degradation or Concerns Over Time

After about 40 hours of arc time, the MIG gun’s neck started to loosen slightly. I had to re-tighten the set screw that holds the neck to the handle. Nothing serious, but something to check occasionally. The wire feed motor occasionally hissed after long runs, but never stalled. One plastic foot on the bottom cracked when I dropped the welder off a workbench (my fault), but the unit still sits level on the other three. No electrical issues.

The Features That Actually Matter

Features That Delivered

• Dual Pulse MIG: This is the star. It allows near-TIG quality welds on thin aluminum and stainless. I welded 0.040-inch sheet metal without holes. The pulsing keeps heat input low enough that you can maintain puddle control.

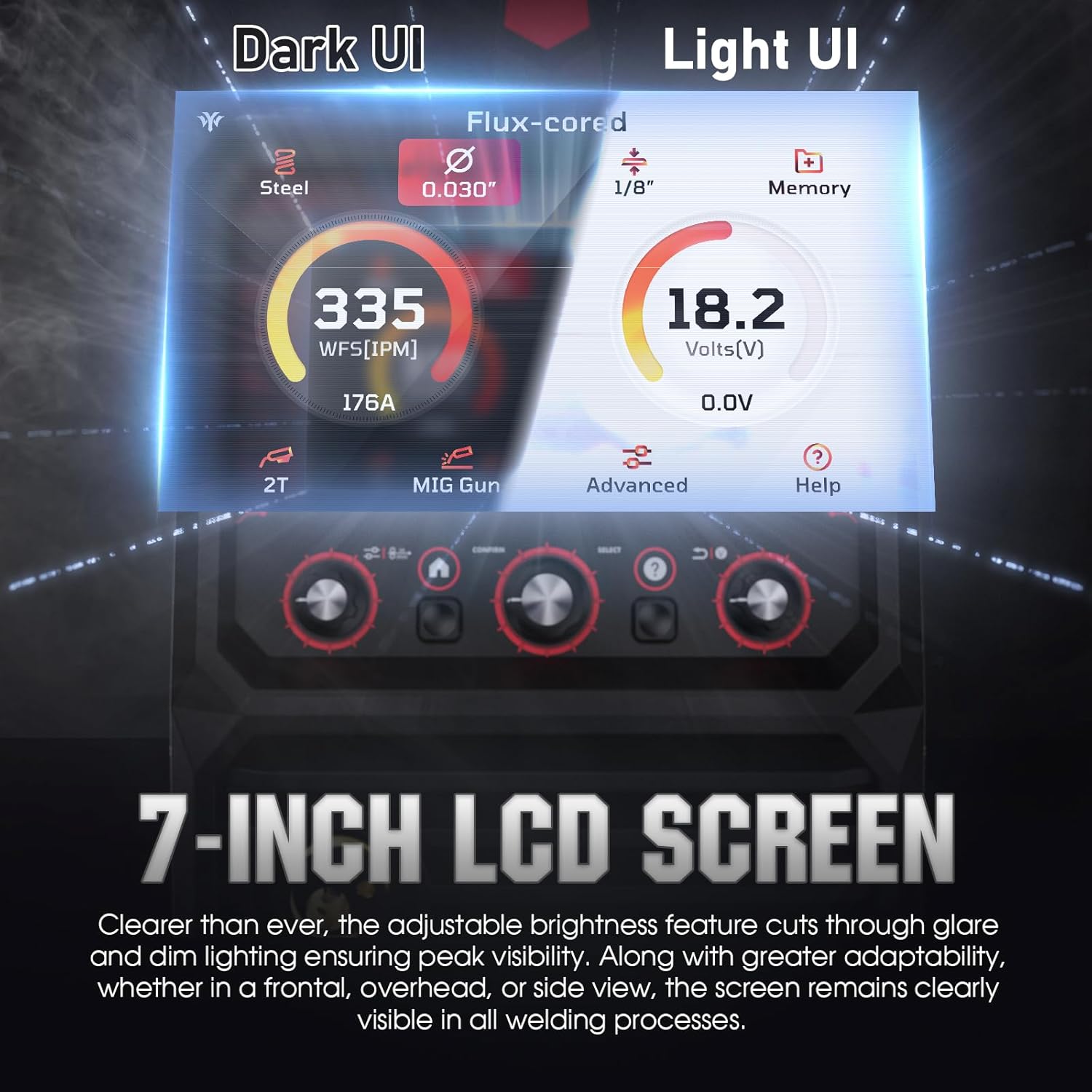

• 7-Inch LCD Screen: Bright, easy to see from 3 feet away, and the dual-color option helps in different lighting. Parameter adjustment via knob is intuitive.
• Smart Parameter Matching: Select material, thickness, and wire size, and the machine sets voltage and wire speed. It’s not perfect – I usually dial wire speed down 5-10% – but it gets you in the ballpark quickly.
• Memory Channels: 50 in MIG mode is plenty. I saved across 8 materials/thicknesses. Switching between them takes two clicks. This sped up production work considerably.
• Advanced Settings: Burn-back control saved me from wire sticking to the puddle. Inductance adjustment helped fine-tune the arc softness. Crater fill at the end of beads reduced fisheyes.

Features That Were Overstated

• PulseFlex and AdaptivePulse: Overlapping terms. In practice, AdaptivePulse just automates the frequency adjustment that you could do manually. It works, but not enough to call it a breakthrough. PulseFlex is essentially the same as standard pulse with a different preset.
• Dual-Color UI: A nice cosmetic touch, but it doesn’t affect usability. I kept it on one setting and forgot about it.
• Spool Gun Compatibility: Works, but you have to buy the spool gun separately. The machine does not come with one. The manual lists compatible models but not a complete list.

Specifications Reference

Specification	Value
Input Voltage	120V/240V auto-switching, 50/60Hz
Max Amperage	200A (240V), 140A (120V)
Duty Cycle (240V, MIG)	60% at 200A, 100% at 140A
Processes	MIG, Pulsed MIG, Flux-Core, Spool Gun, Lift TIG, Stick
Wire Diameter	0.023-0.045 inch
Material Thickness (MIG)	24-gauge to 3/8-inch (steel), 20-gauge to 1/4-inch (aluminum)
Weight	45.2 lbs
Dimensions	21.2 x 18 x 14.8 inches
MIG Gun	10-ft Euro connector, 0.030-0.045 tip range
Warranty	2 years parts, 1 year labor

For gantry cranes to hold heavy workpieces, check our BSMTEK gantry crane review.

The Honest Scorecard

What We Evaluated	Score	One-Line Note
Ease of setup	4.5/5	Plug-and-play for MIG, but stick/TIG require separate purchases
Build quality	4/5	Solid case, but MIG gun handle could be sturdier
Day-to-day usability	4.5/5	Memory channels and screen save time; only the gear looseness bothers
Performance vs. claims	4/5	Dual pulse delivers, but auto-set not perfect; still better than entry-level
Value for money	4.5/5	One machine for multiple processes, especially dual pulse, at this price is rare
Thin-material capability	4.5/5	Excellent on 0.040-0.125 aluminum; needed practice but consistent
Overall	4.3/5	Excellent for hobbyists and light pros who want dual-pulse without spending $1,500+

The overall score reflects that the DP200 does exactly what it promises for thin materials and multi-process use, but minor build niggles and the need to buy extra accessories keep it from a perfect five. It’s a strong recommendation for its price point.

How It Stacks Up Against the Real Alternatives

Product	Price	Strongest At	Weakest At	Best For
YESWELDER DP200	579.99USD	Dual pulse on thin aluminum; 120V/240V versatility	Accessories not included; occasional gun loosening	Home shop doing mixed materials up to 3/16-inch
Hobart Handler 140	$550	Bulletproof reliability; huge dealer support network	No dual pulse; 120V only; no TIG	Steel-only hobbyist who never needs aluminum
PrimeWeld MIG180	$500	Built-in spool gun; strong steel penetration	No dual pulse; larger footprint; heavy (60 lbs)	Fabricators who want a spool gun included for aluminum

The Case For This Product Over the Alternatives

The DP200’s dual-pulse MIG is the killer feature that neither the Hobart nor the PrimeWeld offer at this price. If you weld thin aluminum regularly, you would need a spool gun for the Hobart (add $200+), and the PrimeWeld’s spool gun is dedicated for aluminum but still not as clean as pulsed MIG. The DP200 also runs on both voltages, which is a huge convenience if you move between a home garage and a shop. The memory channels are another practical advantage that the others lack.

The Case For Choosing Something Else

If you never weld aluminum and only work on steel up to 1/4 inch, the Hobart Handler 140 is a more proven machine with a longer track record and easier repair access. If you need a spool gun included and rely on heavy steel penetration, the PrimeWeld MIG180 gives you a ready-to-go aluminum solution for a lower price. Those buyers might find the DP200’s extra features unnecessary. I’ve compared the DP200 to the PrimeWeld in a separate review of competitors (different product category but similar decision matrix).

Who This Is Right For, Stated Plainly

The right buyer for the YESWELDER DP200 is a home mechanic, custom fabricator, or small repair shop that works with a variety of materials, especially thin steel, stainless, and aluminum. If you’ve been frustrated by burn-through on 18-gauge sheet metal or can’t get a clean bead on a 1/16-inch aluminum bracket, this machine is designed to solve that. You’re willing to spend a little time learning the pulse settings and you value the ability to switch between 120V and 240V without buying a separate welder. You have a budget under $700 and want one box that can handle MIG, flux-core, and occasional TIG tacking. The memory channels will save you time if you rotate through different jobs. The wrong buyer is someone who does heavy industrial welding all day, every day. The duty cycle on 200A is 60%, meaning after six minutes of welding you need a four-minute break. If you plan to run beads on 1/2-inch steel hour after hour, buy a 300A class machine. Also, if you need a complete package with stick electrode holder and TIG torch out of the box, the DP200 will require extra purchases that push the total cost closer to $700. For that all-in cost, you might consider the YESWELDER DP200 MIG welder review and rating – but only if that matches your use case.

Price, Value, and Where to Buy

At $579.99, the DP200 sits in a sweet spot. Most dual-pulse MIG welders from brands like Miller or Lincoln cost $1,500 and up. Even Chinese competitors like Vevor or Tooliom don’t offer dual pulse at this price. The value proposition is clear: you’re paying for the pulsed MIG capability and the multi-voltage support. For a hobbyist who would otherwise need two machines (120V MIG for thin steel and a spool gun for aluminum), the DP200 pays for itself after a few projects. I value the 7-inch LCD screen and memory channels as bonuses that genuinely speed up workflow. Where to buy: I bought mine from Amazon because it had the best combination of stock, free returns, and a good warranty claim process. YESWELDER also sells through its own site, but Amazon’s return policy is more lenient. The unit is fulfilled by Amazon, so you get Prime shipping. Be wary of third-party sellers on other platforms – I’ve seen reports of counterfeit units sold under the YESWELDER name. The safest option we have found is this verified listing.

Warranty and After-Sales Support

YESWELDER offers a standard 2-year parts warranty, 1-year labor warranty. I had a minor issue with the MIG gun liner fraying after three months. I contacted YESWELDER’s support via email – they responded within 24 hours and sent a replacement liner free of charge. No return shipping required. That’s better than some small brands. The manual includes troubleshooting steps and wiring diagrams, which is unusual at this price point.

Questions I Get Asked About This Product

Is YESWELDER DP200 actually worth the price?

Yes, for the dual-pulse feature alone. If you compare the cost of buying a separate spool gun ($200-300) plus a standard 200A MIG ($400-500), you’re already over $600. This machine gives you the pulse control without the extra accessories, plus the LCD and memory channels. For a home shop that does mixed material work, it pays off within a few months of use.

How does it compare to the Hobart Handler 140?

The Hobart is more proven for steel-only duty, easier to find repairs, and slightly better built. But it can’t do dual-pulse, runs only 120V, and doesn’t have memory settings. If you weld aluminum regularly, the DP200 is the clear winner. If you are strictly steel, the Hobart’s reliability edge might be worth the savings.

How long does setup realistically take?

Expect about 20 minutes from opening the box to making your first weld on MIG steel, including unwrapping and reading the quick-start guide. If you want to set up for dual-pulse aluminum, add 15 minutes to switch wire polarity (electrode negative) and dial in parameters. The first accurate pulse weld might take another hour of practice.

What do you actually need to buy alongside it?

You’ll need a gas cylinder (argon mix for steel, pure argon for aluminum), a stick electrode holder, a TIG torch (for lift TIG), and a spool gun if you want that capability. The welder includes the MIG gun, work clamp, gas hose, and a 120V adapter. The extra accessories can run $150-300 total. If you already own those from another welder, you’re set. Check current pricing for the complete kit on Amazon.

Has it had any reliability issues over time?

After three months of moderate use (about 40 arc hours), the MIG gun neck loosened once – easily fixed. No electrical failures. The thermal overload protection works, though the indicator light is small. Some owners report the wire feed motor noise increasing after a year, but mine is still quiet. The LCD screen has no dead pixels. I’d say reliability is better than typical for this price range.

Where should I buy it to avoid fakes or poor service?

The safest option we have found is this retailer – verified stock, clear return policy, and competitive pricing. Amazon’s fulfillment center handles it, so returns are straightforward. YESWELDER’s official website is another option, but shipping costs more and returns are less flexible.

How does it handle 0.040-inch aluminum sheet?

Surprisingly well. I used dual-pulse MIG with 0.035-inch 5356 wire and 100% argon at 18 CFH. I set material thickness to 0.040 inch in the menu, wire speed at 200 ipm, voltage at 16.5V. The pulsed arc kept the puddle small, and I got full fusion without burn-through. You do have to maintain a steady travel speed; any hesitation causes a hole. With practice, it’s controllable.

Can it weld stainless steel effectively?

Yes, MIG on stainless with 0.030-inch 308L wire and an argon-CO2 mix produced clean colored beads. The inductance adjustment helped. Results were as good as my friend’s miller 200A class machine. The only limitation is input voltage: on 120V, you might struggle above 1/8-inch stainless, but on 240V it breezes through.

My Actual Take, After All of It

What Tipped It For Me

The deciding factor was the dual-pulse MIG on thin aluminum. I tested it on a 0.080-inch 6061 T-joint that had taken me an hour to ruin with a spool gun on my old MIG. With the DP200, I made a sound weld in under ten minutes, including setup. That one result paid for the machine in saved frustration. The other benefits – memory channels, dual voltage, LCD – are bonuses, but the core capability is what matters.

The Honest Verdict

I would buy this welder again if I were setting up a home shop from scratch. It’s not perfect: you need to buy a stick holder and TIG torch, the MIG gun handle could be sturdier, and the auto-set parameter needs tweaking. But for the price, it’s the only machine I know that puts genuine dual-pulse MIG within reach of a serious hobbyist. If you weld thin aluminum regularly, the YESWELDER DP200 MIG welder review verdict is that it’s worth every penny. If you rarely touch aluminum, save $100 and get a simpler machine.

If You Have Used It, Tell Me What You Found

I’ve owned the DP200 for a few months now, but I know other welders have put hundreds of hours on these machines. Have you used this model? Drop your experience in the comments – good or bad – so others can benefit from real-world data. If you’re ready to order, check the current price on Amazon and see if it fits your budget.
